Description

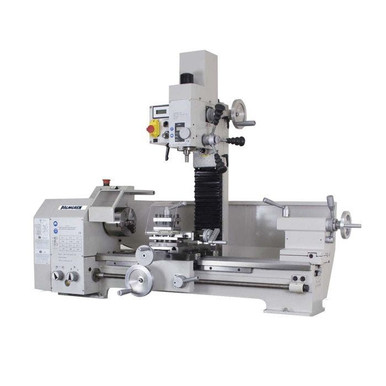

Palmgren’s combination 11″ bench engine lathe and gear head mill delivers the precision, power and versatility to handle a wide range of turning, milling and drilling operations normally found in much larger machines. Heavy cast iron construction, smooth power transmission with precision thrust and ball bearings in the head stock and spindles, hardened and ground ways all designed to go give you years of trouble-free, precise turning, milling and hole making machining. Built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance.The all gear drive transmission on the mill delivers full power at any speed driving the cutting tools at nearly 100% of available horsepower and torque. With such a wide range of versatility and features, this all-purpose combination lathe/mill is one of the most function manual machine centers that can operate in all types and sizes of shops.4 Position Tool Post Height1/2 in.Bed Width7.09 inChuck Size5 inCompound Travel5.60 inCountry of OriginCNDistance Between Centers27″Dist. Btwn. Cntr. & Comp. Tab.3.49 inDrilling Capacity in Cast Iron0.63 inGear Stages2High Range100 – 2900Lathe Height24.80 inLathe Length54.72 inLathe Motor1 HP / 115 V / 60HZ / 1PHLathes TypeGear HeadLathe Weight440.93 lbLathe Width27.56 inLongitudinal Feed Rates0.07 – 0.1 – 0.2Low Speed50 – 1400Max Turning Diameter11.02 inMill Height33.85Mill Length26.38Mill Motor1 HP / 115V / 60HZ/ 1PHMill Weight227.08Mill Width21.65Milling Cap Inserted Tooth Cut2.48 inMilling Cap End Mill Cut (max)0.79 inNumber of Spindle Speeds6Pitch8 – 56 inSpindle Holding FixtureMT2/M10Table Dimensions19.69 in x 7.09 inSpindle Hole1.02 inSpindle Travel1.97 inSwiveling+/- 90°Tailstock Sleeve Travel4.13 inTailstock TaperMT2Top Slide Travel2.43 inT-Slot Size/Distance/Quantity0.47 in / 2.48 in / 3Working Radius7.28 inWarranty3 YearZ-Axis Travel14.57 inUPC726896845203Unit of MeasureEachProduct Height (in)39.5Product Length (in)54Product Width (in)29.5Product Weight (lbs)550
