Description

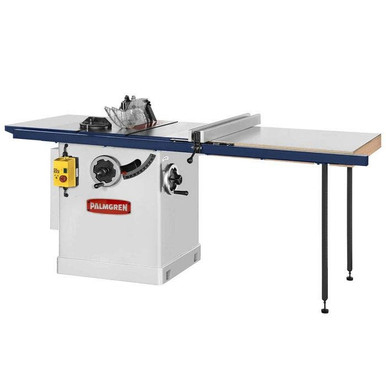

Palmgren cabinet table saws offer precise cutting performance for all woods up to 3″ thick for item 9683413 and 4″ for item 9683416. Ruggedly constructed for continuous service. The saw features an extra large cast iron table with extensions for ripping a max of 50″ to the right of the blade. For dado cuts a 5/8″ diameter arbor and 5/8″ diameter arbor extension along with a 1″ arbor extension are included with the dado table insert. Max 13/16″ dado capacity. The rip fence assembly is designed for simple one-hand maneuverability. Table height is 34″ high.Left tilt or right tilt bladeMachined cast iron table w/cast iron extensions: 10″ – 37″W x 27″D with 2 miter gauge slots 12″ – 48″W x 30″D with 2 miter gauge slots”T” Style rip fence assembly glides smoothly on front and rear railsQuick release blade guard system with riving knife and anti-kickback pawlsIncludes rip fence, miter gauge, 10″ x 40 tooth general purpose blade, 5/8″ dado extension, dado insert 12″ x 40 tooth general purpose blade, 5/8″ arbor extension, 5/8″ dado extension, 1″ arbor extension, dado table insertAMPS16ABlade Length12″ – 1″ BoreCountry of OriginTWCutting Depth 45 degree2-3/4″Cutting Depth 90 degree4″Dust CollectionYesDust Collection Port Size-In.4″Manual Horiz. Band Saw TypeMiter with viseMotor HP3 HPPhaseSingleRipping Capacity Left9-1/8″Ripping Capacity Right50″Sawing TypeWood Cutting SawsTable w/ Ext48″ x 30″Voltage230VWood Cutting Saw TypeCabinetUPC726896834153Unit of MeasureEachProduct Weight (lbs)637
