Description

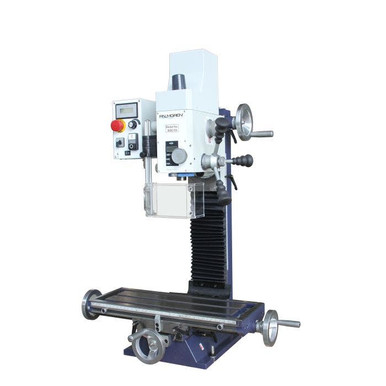

Palmgren’s14″ gear head milling machine delivers the precision, power and versatility to handle a wide range of machining operations normally performed in much larger and more expensive milling machines. Ideal for milling, drilling, slotting, engraving, boring, tapping and angle machining operations in tool rooms, pattern shops, mold and die shops, job shops, fabrication shops and maintenance departments.The all gear drive transmission delivers full power at any speed driving tools at nearly 100% of the available horsepower. These mills are equipped with a high performance brushless DC motor with permanent current control and the latest technology variable speed inverter providing the broadest range of spindle speeds to fit any application. A rigid box column with hardened, ground and handscraped dovetail ways provide accurate head positioning with minimum deflection and vibration. The milling head can be tilted right or left up to 90 degrees. Precision machine tools spindles equipped with taper roller bearings and a spindle concentricity of .0005″ at the spindle nose. The cross slide table is precision ground with t-slots, adjustable limit stops, scale and three metal adjusting hand wheels.EQUIPPED WITH: Halogen work lightDepth stopDigital speed read outDigital readout depth gaugeInterlocking spindle safety guardDraw barCoolant Motor40 W / 0.054 HPCountry of OriginCNDrilling Capacity in Cast Ironmax. Ø 16 mm / 5/8 inGear Stage High150 – 3000 RPMGear Stage Low90 – 1480 RPMHead Tilt± 90°Load of Cross Table (Max.)55 kg / 121 lbs.Milling Cap Cutter Head (max)max. Ø 63 mm / 2-1/2 inMilling Cap End Mill Cut (max)Ø 20 mm / 3/4 inMilling Machines TypeGear HeadMotor HP1.2Optional AccessoriesItem 9670107 Heavy duty floor standPhaseSingleQuill Travel50 mm / 1.969 inSpindle TaperMT2 w /3/8″ – 16 Draw BarTable Dimensions500 mm / 19.685 in x 180 mm / 7.087 inT-Slot Size/Distance/Quantity63 mm / 2.480 in/12 mm / .472 inVoltage115Warranty3 YearWorking Range185 mm / 7.284 inX Axis Travel280 mm / 11.023 inX-Axis280 mm / 11.023 inY Axis Travel175 mm / 6.890 inUPC726896801643Unit of MeasureEachProduct Height (in)36.8Product Length (in)29.3Product Width (in)21.65Product Weight (lbs)227
View the Spec Sheet for This Item
