Description

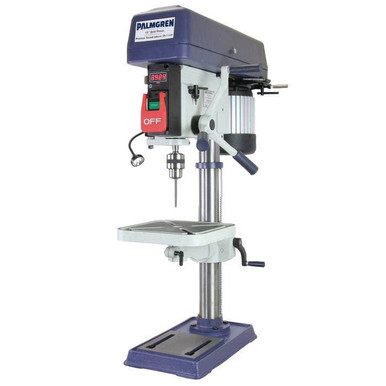

These Drill Presses have the weight and rigidity to maintain the built-in tight tolerances required formetalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces that provide full quill support throughout its travel. A wider range of operation speeds for drilling both large and small holes.Fully enclosed spindle for accurate drilling operationsMaximum spindle run out of 0.0005″Extended quill/spindle travel ideal for deep hole applicationsLED readout of spindle speedRack and pinion table raiserPrecision ground t-slotted work table with coolant troughTable tilts 45° right and left and rotates 360° around the columnQuick change vertical depth stop for accurate, repeatable feed lengthHeavy cast metal 3 spoke quill feed handle with ergonomic speed feed handleFront mounted industrial paddle-type power switchIncludes chuck with key and arborAMPS8.6/4.3Capacity Cast Iron5/8″Country of OriginCNDrill Press ModelBench ModelDrill Press TypeStep PulleyMotor HP1/2RPM138 – 3476Spindle TaperMT2/JT3Spindle Travel5″Swing15″Table Dimensions11-1/2″ x 11-1/2″Table Slots5/8″Voltage120/240Warranty3 YearUPC726896801575Unit of MeasureEachProduct Height (in)43Product Length (in)13.5Product Width (in)27Product Weight (lbs)185
View the Spec Sheet for This Item
