Description

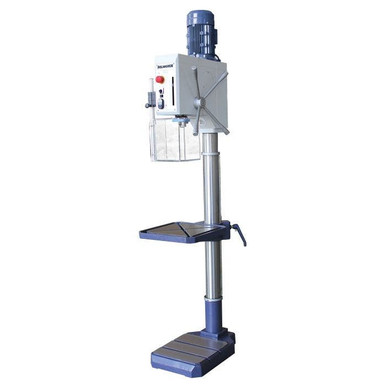

This versatile all gear drive drill press is ideal for precision drilling applications and continuous industrial use.The all gear drive transmission delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower.This drill utilizes the combination of steel and reinforced fiber gears to ensure positive, quite operation.All clutches are made of ground steel for added performance and strength.The wide speed range makes this drill ideal for drilling small to large diameter holes fast and easily.Wide speed range with 8 different speedsSimple knob selectors for operator ease in changing spindle speedsFully enclosed machine tool spindle with internal 3 MT mounted in precision bearings for maximum accuracy, minimizing deflectionQuick release drill ejectorFront mounted control panel designed for operator convenienceForward & reverse spindle switchT-slotted production table and baseRack and pinion table raiserFront mounted dial adjusted work stopInterlocking chuck guardWork lightAMPS8.6/4.3Capacity Cast Iron1-1/8″Capacity Steel1 – 1/8″Chuck Size5/8″Column Diameter3 – 39/64″Country of OriginCNDrill Press ModelBench ModelDrill Press TypeGear HeadMax. Spindle To Base47 – 13/64″Model NumberDH28GSMotor HP1-1/2 – 2Number of Spindle Speeds8Number of Table Slots2Overall Dimensions (LxWxH)15″ x 25″ x 82″PhaseThreePower FeedNoQuill Diameter2 – 23/64″Spindle TaperMT3Spindle Travel5″Swing20″Table Dimensions15-1/2″ x 14 – 13/16″Table Slot Size1/2″Voltage240Warranty3 YearUPC726896802237Unit of MeasureEachProduct Height (in)82Product Length (in)25Product Width (in)15Product Weight (lbs)504
View the Spec Sheet for This Item
