Description

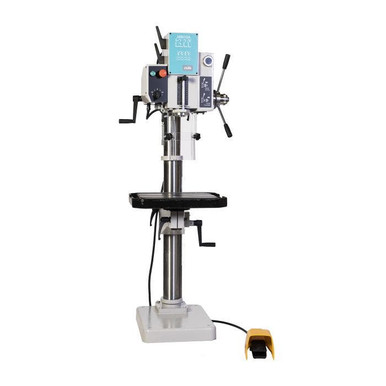

This versatile all gear drive drill press is the right choice for precision drilling applications and continuous industrial use. The gear drive transmission delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower. Helical ground gears ensure positive, quite operation and make speed changes fast and easy. The wide speed range makes this the ideal drill for drilling large to small diameter holes fast and easy.Inch/Metric depth stop2 speed manual forward & reverse switch on 3 PH models2 speed manual forward switch on 1 PH modelFoot reversing switchHead & table rotates 360 degrees around the columnMachined & t-slotted tableQuick release drill ejectorChuck guardNo-volt release prevents spindle start up when power returns after shutdown4″ Palmgren drill press viseDrill chuck & arborMade in SwedenCapacity Cast Iron1-1/8″Capacity Steel1″Column Diameter4″Motor HP1-1/2Number of Spindle Speeds8Number of Table Slots3Overall Dimensions (LxWxH)15-3/4″ x 20″ x 82″PhaseThreePower FeedNoSpindle TaperMT3Spindle Travel5-1/8″Swing20″Table Dimensions20″ x 15-3/4″Table Slot Size1″Voltage460Warranty5 YearUPC726896802442Product Weight (lbs)429
View the Spec Sheet for This Item
