Description

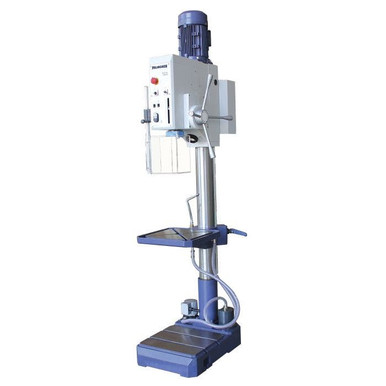

This versatile all gear drive drill press is ideal for precision drilling applications and continuous industrial use. Equipped with a state-of-the-art push button electro-mechanical clutch for power feed engagement and overload protection. The all gear drive transmission delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower.This drill utilizes the combination of steel and reinforced fiber gears to ensure positive, quite operation.All clutches are made of ground steel for added performance and strength.The wide speed range makes this drill ideal for drilling small to large diameter holes fast and easily.Wide speed range with 8 different speedsSimple knob selectors for operator ease in changing spindle speedsElectro-magnetic clutch power feed – the operator simply dials in the desired feed rate and engages the power feed with the push of a buttonThe feed disengages automatically when the preset depth is reachedFully enclosed machine tool spindle with internal MT4 mounted in precision bearings for maximum accuracy, minimizing deflectionQuick release drill ejectorFront mounted control panel designed for operator convenienceForward & reverse spindle switchT-slotted production table and baseRack and pinion table raiserFront mounted dial adjusted work stopInterlocking chuck guardWork lightCoolant systemCapacity Cast Iron1-9/16″Capacity Steel1-1/4″Chuck Size5/8″Column Diameter4-1/2″Country of OriginCNDrill Press ModelBench ModelDrill Press TypeGear HeadMax. Spindle To Base50″Model Number40PM04Motor HP2.0 – 3.0Number of Spindle Speeds8Number of Table Slots2Overall Dimensions (LxWxH)23-1/2″ x 28″ x 86-1/2″PhaseThreePower FeedYesQuill Diameter2 – 61/64″Spindle TaperMT4Spindle Travel4-3/4″Swing22″Table Dimensions15-3/4″ x 16-1/2″Table Slot Size1/2″Voltage240Warranty3 YearUPC726896802251Unit of MeasureEachProduct Height (in)86.5Product Length (in)28Product Width (in)23.5Product Weight (lbs)749
View the Spec Sheet for This Item
