Description

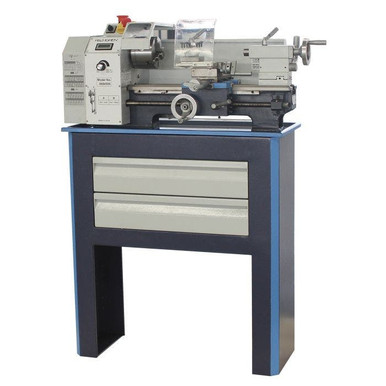

Palmgren’s 8″ bench model engine lathe delivers the precision, power and versatility to handle a wide range of turning operations normally found in much larger machines. Heavy cast construction, smooth power transmission with helical gears, hardened and ground ways all designed to give you years of trouble-free, precise turning.All Palmgren lathes are built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. The bench lathe is the right choice for turning small metal parts and is used in proto type shops, home machinists, jewelry manufacturing, tool rooms, fabrication shops and maintenance shops.EACH LATHE COMES STANDARD WITH: 3 jaw lathe chuckSafety chuck and tool post guards4 way tool postCentersChip trayPrecision thrust and ball bearings in the head stockBed Width3-15/16″Carriage Travel10-1/2″Compound Travel2-1/4″Country of OriginCNCross Slide Travel4″Distance Between Centers12″Lathes TypeBench TopLongitudinal Feed Rates0.004 to 0.0008Motor HP7/8Number of Spindle SpeedsVariableOptional AccessoriesItem 9684499 – Steel floor standOverall Dimensions (LxWxH)33″ x 16-3/4″ x 14-1/4″PhaseSingleSpindle Bore3/4″Swing Over Bed8″Tailstock TaperMT 2Tailstock Travel2″Thread Range (In.)8″ x 44″Thread Range (mm).2 to 4.0Voltage115Warranty3 YearUPC726896845081Unit of MeasureEachProduct Weight (lbs)135
View the Spec Sheet for This Item
