Description

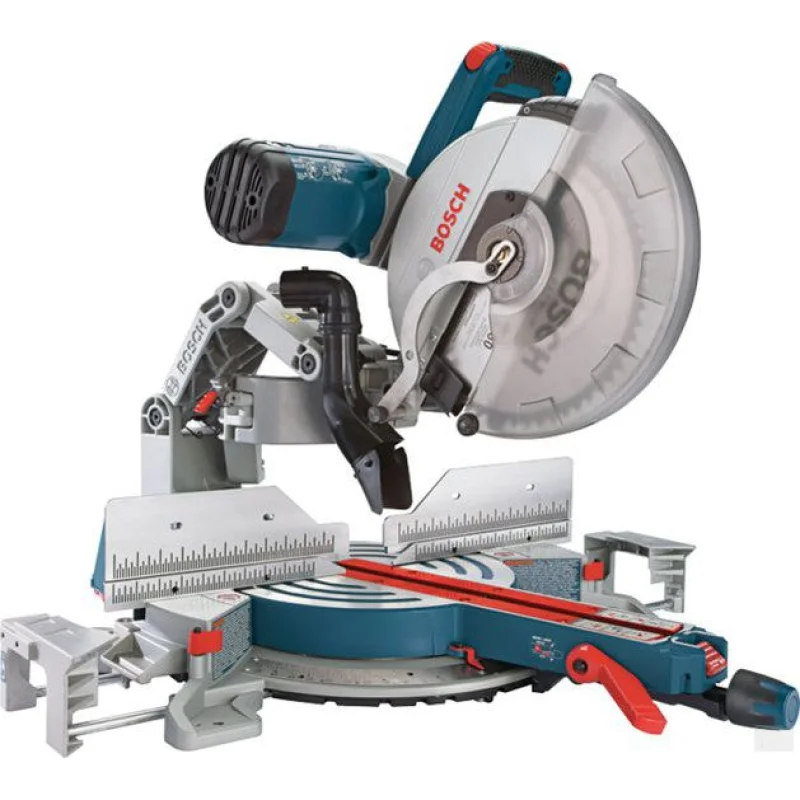

The Bosch-exclusive Axial-Glide offers wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. The Bosch miter saw’s 15 Amp motor delivers no-load speeds of 3,800 RPM for quick, accurate cuts in many materials. For added convenience and versatility, the saw is compatible with a variety of 12 In. blades and it has a clear lower guard to provide unobstructed cut-line visibility. The GCM12SD provides easy adjustments with upfront bevel and miter controls and detents at common angles. The saw’s all-metal bevel lock lever and range selector are located up front to make bevel adjustments easy. Includes (1) 12 60T Blade (1) Material Clamp (1) Dust Bag
Benefits
- The Bosch GCM12SD is a 12 In. Dual-Bevel Glide miter saw that features a smooth cutting motion, accurate performance and a space-saving design of the Bosch-exclusive Axial-Glide system
- Pre-aligned Squarelock fences help the saw maintain precision throughout its life
- A soft-grip ambidextrous handle along with a combination dust chute and vacuum adaptor add to user comfort
- The saw also offers a large cutting capacity, easy-to-read bevel and miter scales with detents at common angles, and easy-access upfront controls
- Integrated expanding base extensions: 60% more left-to-right material support than leading competitor – 40 In. left to right
- Large easy-to-read uniform bevel & stainless steel miter scales: 52 left/60 right miter capacity; 47 left/47 right bevel capacity with marked detents and roof pitch angles
- Adjustable miter detents: detents at 0, 15, 31.6, 22.5, 45, 60 right super-accurate and durable design
- Push-button miter Detent override – easy-to-access thumb actuated control right up front for fine miter angle adjustment
- Bevel detents: 0, 33.9, 45 left/right for accurate cuts
- Category best 90% dust collection – optimized for cutting 2x material with a vacuum
- Ergonomic ambidextrous trigger handle with soft grip – large form fitting ergonomic handle provides comfort for all-day use
Specifications
| Attributes | |
|---|---|
| Amperage | 15.0 |
| Bevel Angle Range | 48 left and 48 right |
| Bevel Stops | 0, 33.9, 45 Left/Right |
| Blade Diameter | 12.0 |
| Dust Collection | Yes |
| Length | 32.375″ |
| Miter Angle Range | 52 Left, 60 Right |
| Miter Detents | 0, 15, 22.5, 31.6, 45 (Left/Right) |
| Miter Positive Stops | 0, 15, 22.5, 31.6, 45 (Left/Right), 60 (Right) |
| No Load RPM | 3,800 |
| Voltage | 120V |
| Weight | 65.0lb |
| Width | 26.5″ |
| Includes | (1) 12 60T Blade, (1) Material Clamp, (1) Dust Bag |
