Description

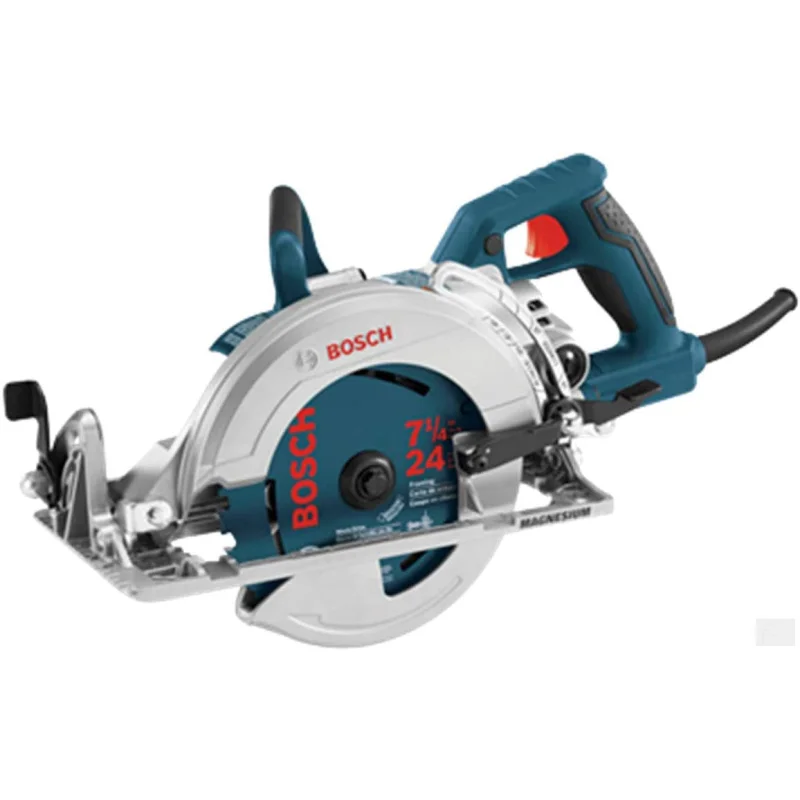

The worm drive system on the CSW41 features an enormous gearing ratio in a compact size. So if you want tremendous power in a manageable package, this is the saw you need. This model features sturdy magnesium housing and a die-cast magnesium footplate for true strength and a lifetime of reliable use. It also has easily serviceable brushes, large adjustment levers, a spindle lock, and a built In. saw hook for easy storage between tasks. Top it all off with a soft grip handle for comfort, control, and accuracy, and you’ve got one exceptional piece of equipment.
INCLUDES
- (1) CSW41 7-1/4 In. Blade Left Worm Drive Saw
- (1) Multi-Function Blade Wrench
- (1) Carbide Blade
- (1) Built in Saw Hook
SPECIFICATIONS
|
ATTRIBUTES |
|
|
Amperage |
15.0 |
|
Arbor Size |
Diamond |
|
Bevel |
53 |
|
Blade Diameter (in) |
7.25 |
|
Blade Size |
7-1/4″ |
|
Case Type |
No Case Included |
|
Depth of Cut |
2-3/8″ |
|
Dust Blower |
No |
|
Dust Collection |
No |
|
Electric Motor Brake |
No |
|
Height |
9.0″ |
|
Length |
20.75″ |
|
Max. Bevel Capacity () |
53.0 |
|
Max. Depth of Cut at 45 Deg. |
1-15/16″ |
|
Max. Depth of Cut at 50 Deg. |
1-13/16″ |
|
Max. Depth of Cut at 90 Deg. |
2-3/8″ |
|
No Load RPM |
5,300 |
|
Rating |
120 V |
|
Voltage |
120V |
|
Weight |
12.3lb |
BENEFITS
-
Light weight magnesium motor housing and foot plate construction lighter weight saw reduces user fatigue for less down time
-
Built-in saw hook allows convenient saw storage between cuts
-
Featherboard multi-function wrench for blade and brush change, lever adjustments and blade diamond center knockout
-
Accurate depth of cut system allows for quick accurate adjustment
-
Left side blade design for unmatched clarity of cut line
-
Anti-snag lower guard – provides smooth operation for small cut-off pieces
-
Soft-grip handles for comfort and control
-
53 bevel capacity with positive detent stop at 45
-
Large adjustment levers for fast, accurate bevel and depth adjustments
-
Easy access spindle lock for easy blade changes
-
Powerful 15 amp motor provides power for a variety of cutting applications
