Description
Package Includes:
Cros-Arc MMA 161D Inverter Power Source
Earth Return Lead & Clamp
3 Metre MMA Lead
13A Plug
Durable Carry Case

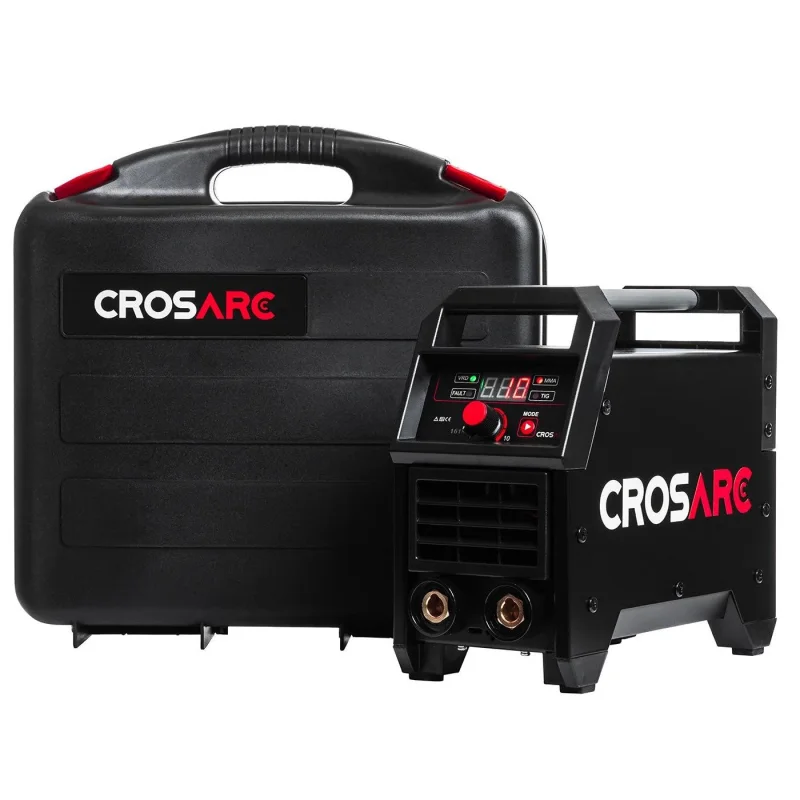

Cros-Arc MMA 161D Inverter Welder with Carry Case
The Cros Arc MMA 161D is a highly portable and robust multi-process inverter welder designed for a wide range of welding applications. Powered by the latest IGBT inverter technology, the 161D delivers stable, smooth welding arcs whether operating on a 110V or 230V supply ideal for flexible site and workshop work.
With full MMA and TIG DC Lift functionality, a digital amp display, and VRD safety protection, this machine offers top-class performance combined with safe and easy operation. Compact, lightweight, and generator friendly, the Cros Arc MMA 161D is supplied with a carry case for ultimate portability, making it the perfect choice for mobile welding operations, agricultural repairs, and maintenance tasks.
This is ideal for:
- On-site Repairs and Maintenance
Agricultural Equipment Repairs
Workshop Welding
Light to Medium Fabrication
What does it weld?
Mild Steel
Stainless Steel
Cast Iron
Features
Latest IGBT Multi-Process Inverter Technology
MMA and TIG DC Lift Welding Capabilities
Operates on 110V and 230V Power Supplies
Digital Amp Display for Precision Settings
VRD (Voltage Reduction Device) for Improved Safety
Suitable for 1.6mm to 3.2mm MMA Electrodes
35-50mm Cable Sockets for Secure Connections
Lightweight and Highly Portable Only 8.5kg
Carrying Case Included for Easy Transport
Generator Friendly Perfect for Mobile Work
Fan Cooled for Enhanced Durability
Simple and Fast Setup for Ease of Use
Conforms to EN IEC 60974-1:2022 + A11:2022 / EN IEC 60974-10:2021
Technical Specifications
Input Voltage: 1P~110/230V (+/-15%) 50/60Hz
Input Current 110V: 32A
Input Current 230V: 16A
Current Range 110V: 15120A
Current Range 230V: 15160A
Duty Cycle @ 40C:
120A @ 25% (110V)
160A @ 25% (230V)
Power Factor @ 100%: 0.73
Protection / Insulation Class: IP21/F
Cooling: Fan Cooled
Dimensions: 450mm x 280mm x 320mm
Weight: 8.5Kg
Standards: EN IEC 60974-1:2022 + A11:2022 / EN IEC 60974-10:2021
Warranty
Supplied with a 2-year warranty for your peace of mind.
Datasheet
