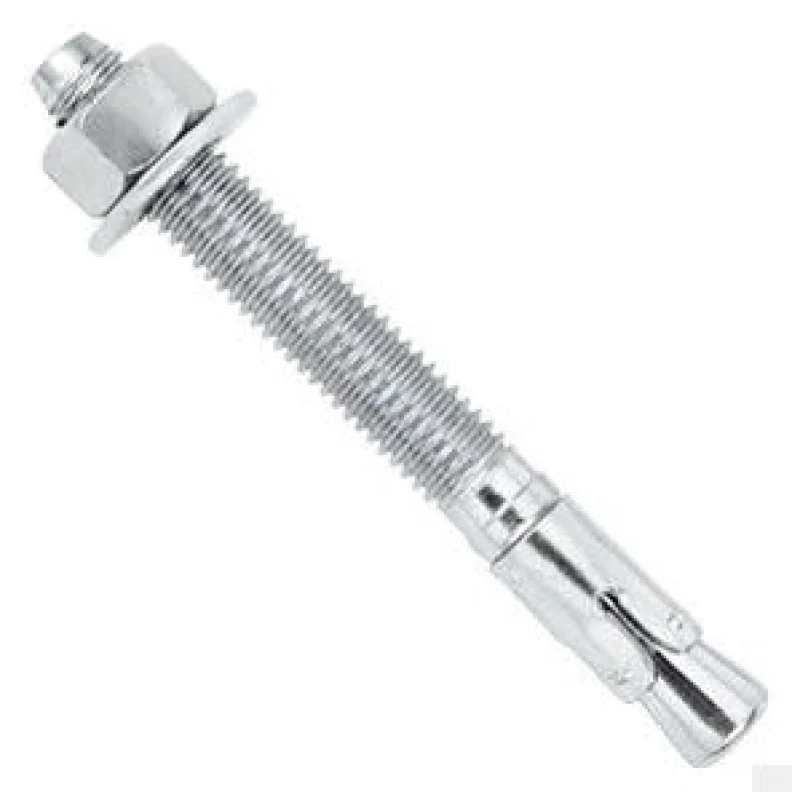

DEWALT by Powers 1/2″ x 5-1/2″ Power-Stud+ SD1 Wedge Expansion Stud Anchor [7424SD1]

Description

The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and un-cracked concrete. Suitable base materials include normal-weight concrete, structural sand-lightweight concrete and concrete over metal deck. The anchor is manufactured with a zinc plated carbon steel body and expansion clip. Nut and washer are included.

General Applications and Uses:

• Structural connections, beam and column anchorage
• Safety-related attachments
• Interior applications / low level corrosion environments
• Tension zone applications, cable trays, and strut, pipe supports, fire sprinklers
• Seismic and wind loading

FEATURES:

• Consistent performance in high and low strength concrete
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard fixture holes
• Length ID code and identifying marking stamped on head of each anchor
• Anchor design allows for follow-up expansion after setting under tensile loading

SPECIFICATIONS:
