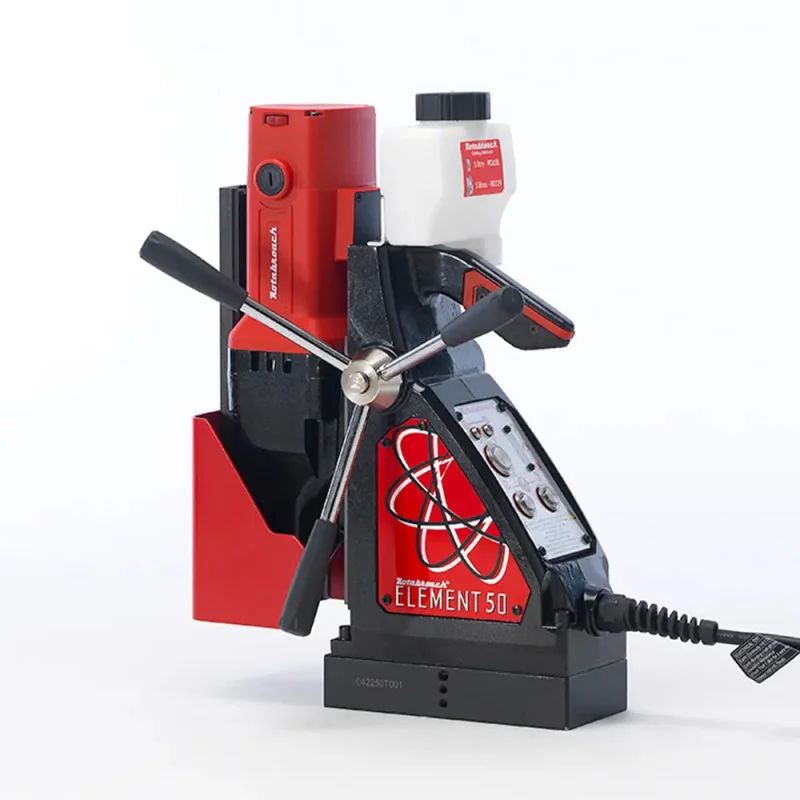

Description
-
Powerful 1500W motor featuring a two-speed gearbox.
-
15kg in total weight.
-
Suitable for drilling up to 50mm diameter by 50mm depth.
-
CutSmart Technology designed to protect your motor and cutter, prolonging tool life.
-
Quick release interchangeable handle allowing you to operate the mag drill from either side and improving accessibility.
-
Internal cabling reduces the risk of damage and downtime for your magdrill.
-
Internal cooling keeping your mag drill cool and allowing you to drill for longer.
-
Reversible features to allow tapping, 13mm chuck also allows twist drilling.
-
Can be used to countersink up to 30mm.
-
Dual motor protection system to prolong the machines life and prevent unwanted wear.
SPECIFICATION
| Model Number |
Element 50/1 / Element 50/3 |
|---|---|
| Motor Specification |
110V 1500W / 230V 1500W |
| No load RPM |
Low Gear: 100-265 RPM/High Gear: 200-500 RPM |
| Max Hole Cutting Capacity |
50 x 50mm Deep 23mm with MT Shank Drill |
| Overall Dimension |
Height: 460mm / Width: 195mm with Capstan / Length: 400mm with Guard |
| Machine Weight |
15.8kg |
| Magnetic Adhesion |
13,500N |
| Magnet Size |
200mm x 98mm |
| Safety Features |
Cutsmart Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch |
Manual
