Description

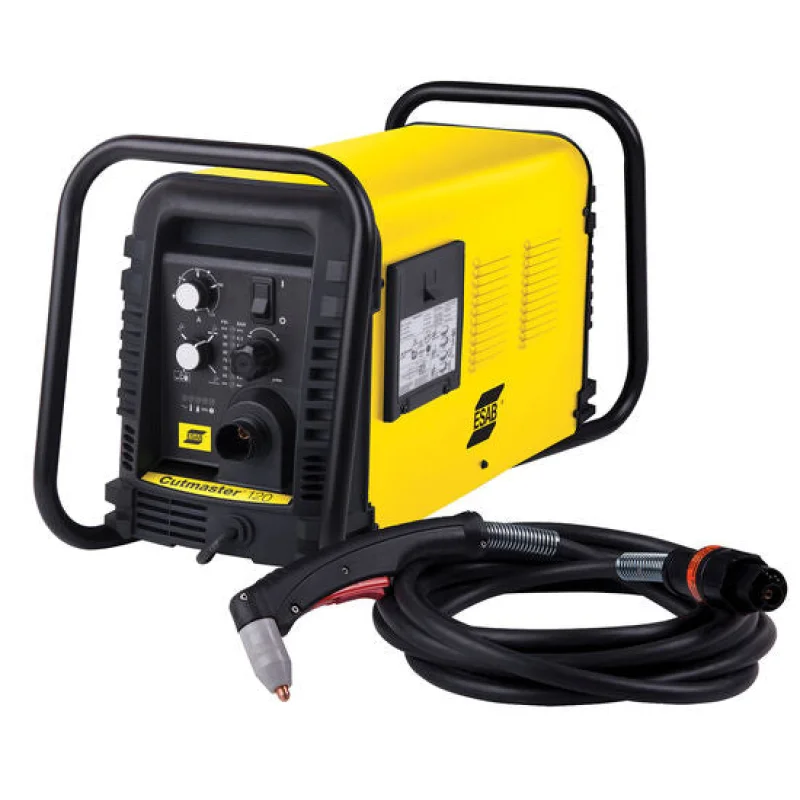

The ESAB Cutmaster 120, weighing only 28 kg and provides 120 amps of cutting power for a 40mm (1-1/2) recommended cut and 55mm (2-1/8) maximum cut. This compact unit, like all other Cutmasters, comes standard with the 1Torch providing you with the well known comfort and reliability famous throughout the industry. Packages include power source, SL100 1Torch, spare parts kit, air filter/regulator, work cable and clamp and power cable.
Highlights
- True CutTM 40mm 1-1/2)
- Quick Disconnect Torch for easy maintenance or machine torch conversion
- Auto-Restrike on mesh or expanded metal for maximum productivity
- True-GuardTMroll bar for ultimate protection
- TD Sureloktechnology for better quality cuts and parts life
Industries
- Heavy Fabrication
- Ship/Barge Building
- General Manufacturing
- Civil Construction
- Pipeline
- Mining
Specifications
| Specifications | |
|---|---|
| Recommended Generator | 15.4 kW |
| Input Volts | 400 V, 3 , 50/60 Hz |
| Duty Cycle | 120 A @ 40 % % welding duty cycle |
| Input Voltage | 32 A @ 400 V / 400 V |
| Gas Pressure | 5.2 bar |
| Gas Flow | 212 l/min |
| Pierces | 25 mm |
| Torch Air Pressure | 5.2 bar |
| Torch Air Consumption | 212 l/min |
| Dimensions, L x W x H | 762 x 305 x 381 mm |
| Weight | 28.1 kg |
| Recommended Cut | 40 mm |
| Maximum Cut | 55 mm |
