Description
TECHNICAL SPEC
- Pipe cutting capacity (OD): 4 to 15 (110mm 360mm)
- Max. wall thickness: 1.8 (45mm) Cast iron, 1.8 (45mm) Plastic
- Pipe material: Aluminum, Cast iron, Ductile (nodular cast iron), Glass fiber, Plastic, Stainless/Inox steel, Steel
- Power: 4.6 HP / 3,4 KW
- Required Air Pressure: 6 bar / 90 psi
- Blade diameter: 140 mm (5.51), 165 mm (6.5″), 180 mm (7.2″), 190 mm (7.6″)
- Mounting bore: 2.44 (62mm)
- Weight: 59 lbs (26.7 kg)
KEY FEATURES
Purpose-Driven Design: Specifically engineered for cutting cement-lined cast iron pipe material, catering to repair and maintenance needs in the water utility sector.
Underground Precision: Ideal for cutting pipes in a fixed position underground, even with the pipe encapsulated with water.
Market-Driven Innovation: Developed in response to market demands for an air-driven saw capable of cutting pipes in challenging conditions.

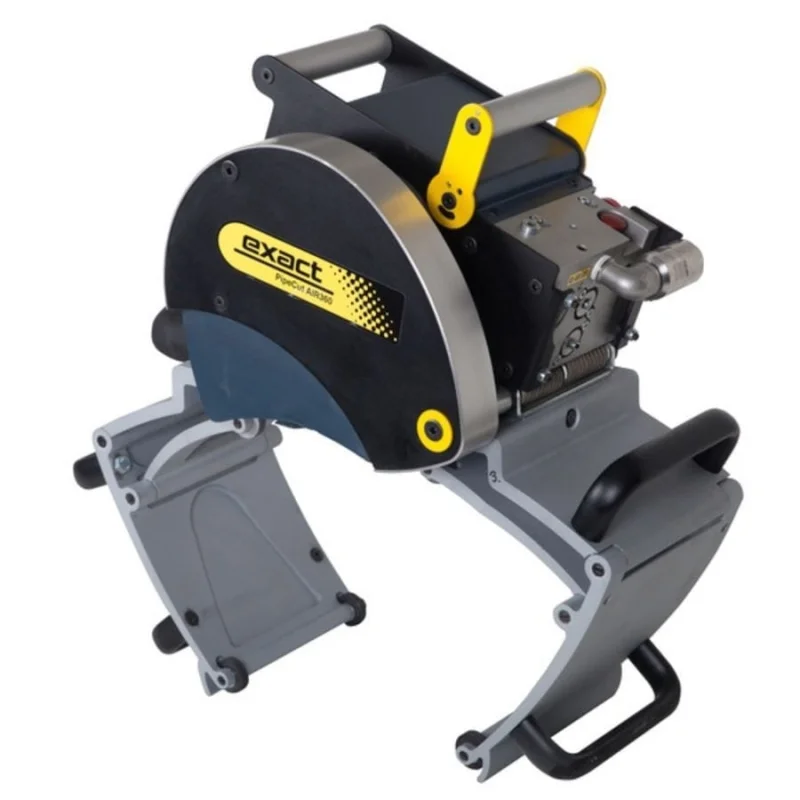

Wide Application: While excelling at cast iron, the PipeCut Air 360 also accommodates cutting plastic and steel pipes, with options for different blades.
Blade Variety: Choose from a range of blades, including the Diamond X180 disc for cast iron, Cermet 180 saw blade for stainless steel, and ALU 180 saw blade for plastics and aluminum.
Extended Cutting Depth: Enhance your cutting capabilities by opting for 180 mm blades, providing greater cutting depth for diverse projects.
Upgrade your pipe cutting experience with the PipeCut Air 360, the pneumatic solution that meets the demands of utility companies for precision, durability, and adaptability. Sharpen your focus on efficiency shop now!
