Description

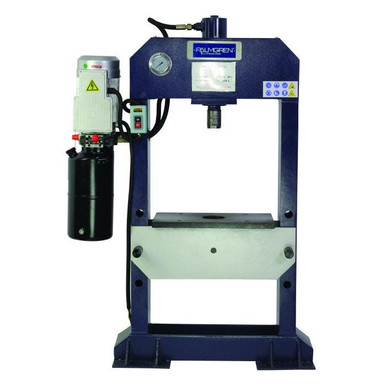

Palmgren’s Electronic Pump H-Frame Presses come in a variety of shapes and sizes. The Electronic H-Frame line consists of 10-ton, 25-ton and 50-ton, with varying frame heights to suit all applications. The electronic H-Frame presses are the premier solution to any application from fabrication shops to prototype labs.Pressure gauge for direct pressure readingsEasily adjustable table for quick height changes between applicationsHoles in side frames allow for insertion of long materialElectronic operation for increased performanceFully-welded heavy steel plate frame for maximum rigidityFactory preset relief valve to prevent exceeding maximum pressure capacityBy-pass hole prevents excessive ram extensionRapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valveSingle acting cylinder design for improved operationCapacity over Table (inches)12Country of OriginCNCylinder (Fixed or Dynamic)FIXEDCylinder TypeSingle ActionDiameter of Work (inches)19.5Frame Capacity10 TONSH-frame Press TypeElectronic PumpLargest Arbor Extension10Max. Distance Ram to Table19″Max Pressure10 tonMax. Work Diameter19.5″ x 19.5″Minimum Work Diameter19.5 x 0.75Motor HP3Overall Dimensions (LxWxH)28″ x 17″ x 80″PhaseSinglePressure (tons)10Press TypeH-frame PressesPump TypeELECTRICRam Bore (inches)2.3Ram Diameter2.3Ram Size10Ram Speed-Press1.18Reservoir Capacity2 GAL8LSize of Ram Face (inches)2.3 Dia.Table Weight88Throat Capacity19″ x 12″Voltage230Warranty3 YearWorking Height (inch)8.40Working Width (inch)19.5UPC726896616124Unit of MeasureEachProduct Height (in)52Product Length (in)14Product Width (in)34Product Weight (lbs)590
View the Spec Sheet for This Item
