Description

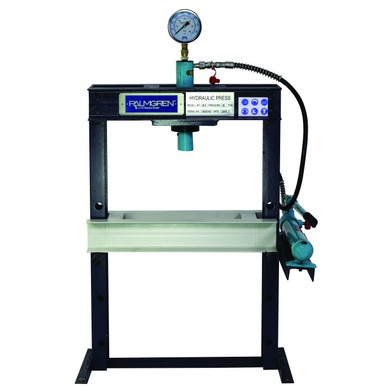

Palmgren’s Hand Operated H-Frame Press Line consists of 10, 25- and 75-ton presses. Each machine is constructed from heavy duty steel plate that is welded together. The combination of rigid construction and industrial grade hydraulics make Palmgren’s H-Frame presses the ultimate solution for the serious fabrication and machine shop owner who demands only the best quality from his operation.Pressure gauge for direct pressure readingsEasily adjustable table for quick height changes between applicationsHoles in side frames allow for insertion of long materialHand operation for economic performanceEfficient hand pump is conveniently located for reduced operator fatigueFully-welded heavy steel plate frame for maximum rigidityFactory preset relief valve to prevent exceeding maximum pressure capacityBy-pass hole prevents excessive ram extensionRapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valveSingle acting cylinder design for improved operationCapacity over Table (inches)11.8Country of OriginCNCylinder (Fixed or Dynamic)FIXEDCylinder TypeSingle ActionDiameter of Work (inches)19.5 x 19.5Frame Capacity10 TONSH-frame Press TypeManual PumpLargest Arbor Extension6.3Leverage Radio400/1Max. Distance Ram to Table19.5″Max Pressure10 TonMax. Work Diameter19″ x 19″Ram Dimensions10Minimum Work Diameter19 x 0.04Motor HP3Overall Dimensions (LxWxH)23″ x 17″ x 36″PhaseSinglePressure (tons)10Press TypeH-frame PressesPump TypeMANUALRam Bore (inches)1.5Ram Diameter1.5Ram Size6.3Reservoir Capacity24 OZ 2LSize of Ram Face (inches)1.5 Dia.Table Weight22Throat Capacity19.5″ x 11.81″Warranty3 YearWorking Height (inch)8-2/3Working Width (inch)19.5UPC726896616100Unit of MeasureEachProduct Height (in)44.5Product Width (in)20.5Product Weight (lbs)86
View the Spec Sheet for This Item
