Description

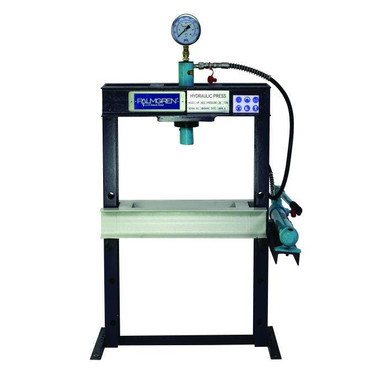

Palmgren’s Hand Operated H-Frame Press 10-ton press is constructed from heavy duty steel plate that is welded together. The combination of rigid construction and industrial grade hydraulics make Palmgren’s H-Frame presses the ultimate solution. These presses are for the serious fabrication and machine shop owner who demands only the best operational quality.Pressure gauge for direct pressure readingsEasily adjustable table for quick height changes between applicationsHoles in side frames allow for insertion of long materialHand operation for economic performanceEfficient hand pump is conveniently located for reduced operator fatigueFully-welded heavy steel plate frame for maximum rigidityFactory preset relief valve to prevent exceeding maximum pressure capacityBy-pass hole prevents excessive ram extensionRapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valveSingle acting cylinder design for improved operationCapacity19.5″ x 11.81″Capacity over Table (inches)11.8Country of OriginCNCylinder (Fixed or Dynamic)FIXEDCylinder TypeSingle ActionDiameter of Work (inches)19 x 40Frame Capacity10 TONSH-frame Press TypeManual PumpLargest Arbor Extension6.3Leverage Radio1000/1Max. Distance Ram to Table19.5″Max Pressure10 TonMax. Work Diameter19″ x 40″Ram Dimensions6.3Minimum Work Diameter19 x 0.04Overall Dimensions (LxWxH)23″ x 17″ x 60″Pressure (tons)10Press TypeH-frame PressesPump TypeMANUALRam Bore (inches)1.5Ram Diameter1.5Ram Size6.3Reservoir Capacity2LTable Weight88Warranty3 YearWorking Height (inch)8.30Working Width (inch)19.5UPC726896616117Unit of MeasureEachProduct Height (in)60Product Width (in)17Product Weight (lbs)130
View the Spec Sheet for This Item
