Description

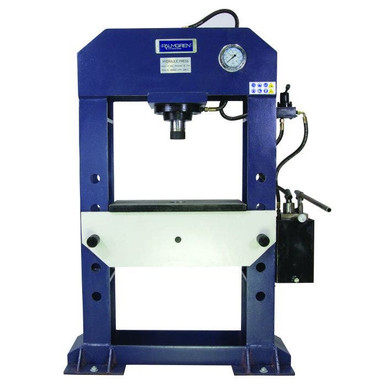

Palmgren’s Hand Operated H-Frame Press Line consists of 10, 25- and 75-ton presses. Each machine is constructed from heavy duty steel plate that is welded together. The combination of rigid construction and industrial grade hydraulics make Palmgren’s H-Frame presses the ultimate solution for the serious fabrication and machine shop owner who demands only the best quality from his operation.Pressure gauge for direct pressure readingsEasily adjustable table for quick height changes between applicationsHoles in side frames allow for insertion of long materialHand operation for economic performanceEfficient hand pump is conveniently located for reduced operator fatigueFully-welded heavy steel plate frame for maximum rigidityFactory preset relief valve to prevent exceeding maximum pressure capacityBy-pass hole prevents excessive ram extensionRapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valveSingle acting cylinder design for improved operationCapacity over Table (inches)15.75Country of OriginCNCylinder (Fixed or Dynamic)FIXEDCylinder TypeSingle ActionDiameter of Work (inches)23Frame Capacity75 tonsH-frame Press TypeElectronic PumpLargest Arbor Extension11.81Leverage Radio1000/1Max. Distance Ram to Table23.6″Max Pressure75 tonMax. Work Diameter23″ x 25.5″Minimum Work Diameter23 x 0.75Overall Dimensions (LxWxH)50″ x 23″ x 87″Pressure (tons)75Press TypeH-frame PressesPump TypeMANUALRam Bore (inches)2.5Ram Diameter2.5Ram Size11.81Reservoir Capacity12 QT20LSize of Ram Face (inches)2.5 Dia.Table Weight175Throat Capacity23.6″ x 15.75″Warranty3 YearWorking Height (inch)15-43Working Width (inch)31.5UPC726896616155Unit of MeasureEachProduct Height (in)78.75Product Width (in)67Product Weight (lbs)460
View the Spec Sheet for This Item
