Description
What is EVOLVE
It is a new product series developed by JASIC thatfeatures full digital control welding machines with IoT technology and cloud service.
| Advanced DSP Processor | Full Digital HMI | High Precision Arc Control | Cloud Service |
Why EVOLVE?
Todays welding challenges are complex and constantly changing, and a welding machine that can update its processes and functions on
demand is JASICs response to thosechallenges.
This constantly EVOLVEing future-proof inverterfits the modern welding environment and survives its challenges.

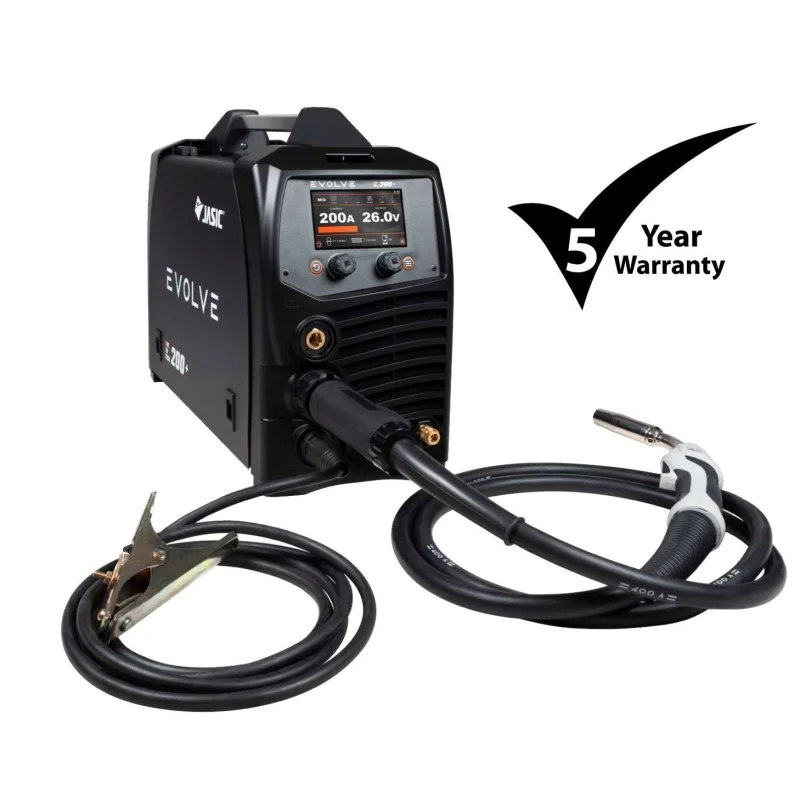

The EVOLVE 200+
Being the introductory model in the range, it brings in JASICs concept of advanced digital welding thanks to 4 main aspects of the machine:
The ARM Cortex-M4, with its floating-point unit (FPU), is ideal for precise pulse control due to its efficient signal processing.
It supports advanced welding algorithms, enhancing the EVOLVE200+s overall weld quality.
Full Digital HMI (Human-Machine Interface)
EVOLVEs digital interface provides a seamless, intuitive user experience, regardless of the welders distance from the power source.
Mobile App
- Capable of managing multiple machines
- Wireless connection via Bluetooth or Wifi
- Intuitiveuserinterface
- Comprehensive welding parameter configuration
Inverter Frequency Modulation
This feature boosts EVOLVE200+s energy efficiency by adjusting its inverters switching frequency (26K-40K) based on output. High frequency for low current settings improves arc control, while low frequency for high current reduces power loss and heat.
Glick Function
The trim function allows users to adjust output current mid-weld during 4T MIG/TIG welding by pressing the torch trigger. This enables more precise heat control and greater flexibility in weld bead shaping.
Double Pulse MIG Welding
Double pulse MIG welding uses two current pulses per cycle. This stirs the weld pool more effectively than single pulse, resulting in finer grain structure, better weld bead quality, and reduced heat input.
JTECloud
This cloud service aims to provide comprehensive productivity boost by allowing users to capitalize on the power of welding data and IoT applications.
Professional Welding Cloud Service
- Welding data documentation, statistics, and analysis
- Cost calculation and analysis
- Machine management and maintenance
OTA (Over-the-air) Firmware Update
Users can receive push notification on the EVOLVE200+ whenever theres a new version of firmware available*. Upon the users approval, the machine will download the updated firmware and complete firmware update process automatically.
Note:themachinesfirmwareisalso downgradable.
On Demand Processes & Functions
To be an EVOLVE welding machine means being able to renew its processes and functions according to the jobs requirements. When connected to JTECloud, the EVOLVE200+ is able to download new processes and functions, and replace the old ones if the user wishes.
Fully Synergic, Powered by JTECloud
The EVOLVE200+ has 19 built-in synergic programs covering MMA, TIG, MIG/MAG, pulse MIG and double pulse MIG.
And on JTECloud, users can have access to an ever-expanding synergic program library. Users can download these on-cloud synergic programs to the EVOLVE200+ when the machine is connected to JTECloud.
