Description
- Easy and simple mounting
- Special clamp jaw design applies loads away fromflange edge
- Fits wide range of beams and flange widths lowheadroom design
- Heavy duty construction

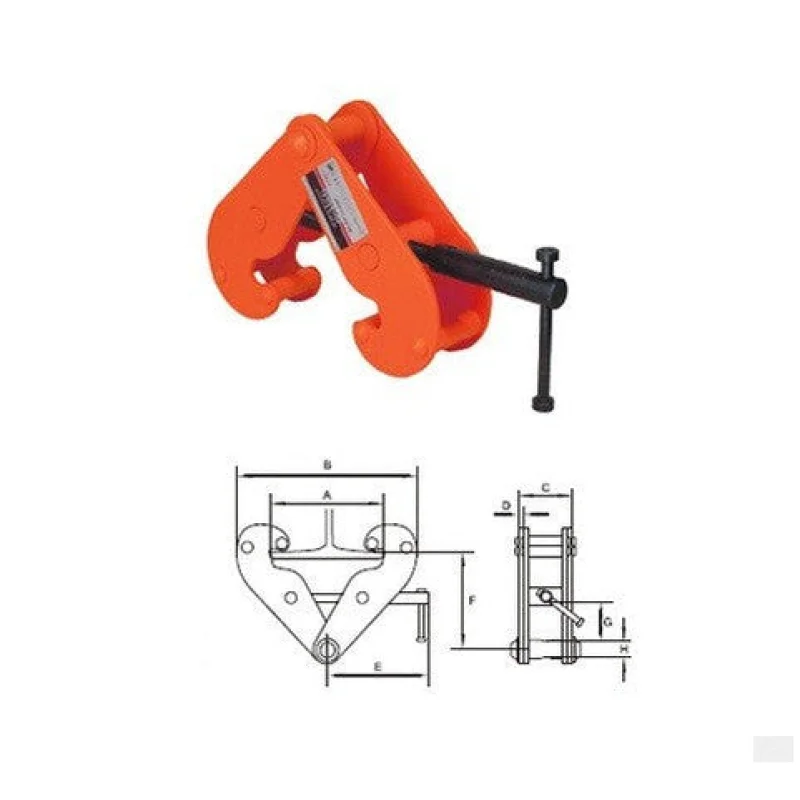

BC Beam Clamps
| Safe Working Load kg | Adjustable beam width mm | A | B | C | D | E | F | G | H | ||
| max mm | min mm | max mm | mm | mm | mm | min mm | max mm | mm | mm | ||
| 5000 | 80-320 | 354 | 235 | 490 | 110 | 10 | 260 | 140 | 225 | 45 | 28 |
