Description
Capable of cutting, reaming, counterboring and tapping holes, the MagBeast HM100T is the perfect all-around choice for a variety of applications using simple and efficient electronic controls.

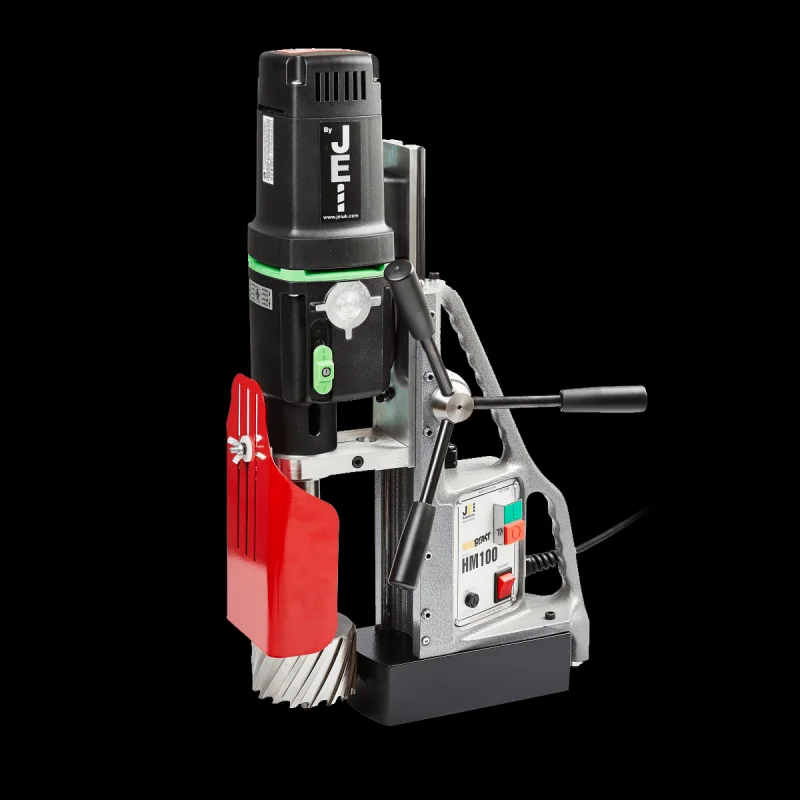

MAGBEAST HM100T
SPECIFICATIONS
| Model | HM100T | HM100TS SWIVEL BASED MODEL |
| Spindle | MT3 | MT3 |
| Weight | 23.5 kg | 27 kg |
| Max Stroke | 250 mm | 290 mm |
| Cutter Capacity | 100 mm x 6 depth of cut | 100 mm x 6 depth of cut |
| Twist Drill Capacity | 19 mm with 3MT Chuck ~ 32 mm with 3MT Twist Drill | 19 mm with 3MT Chuck ~ 32 mm with 3MT Twist Drill |
| Countersink Capacity | 55 mm | 55 mm |
| Tapping Capacity | M30 | M30 |
| Reaming Capacity | 39 mm | 39 mm |
| Motor | 1800 W | 1800 W |
| RPM | 2 Variable Speeds (torque control) 60140 / 200470 | 2 Variable Speeds (torque control) 60140 / 200470 |
| Swivel Base | n/a | 360 Degree |
| Height min/max | 450 / 700 mm | 495 / 740 mm |
| Length x Width | 345 x 190 mm | 345 x 190 mm |
| Magnetic Base L x W | 212 x 102 mm | 212 x 102 mm |
| Magnet Deadlift | 2050 kg on 1 Plate (20100 N) | 2050 kg on 1 Plate (20100 N) |
| Noise Level | <90dB | <90dB |
| Vibration Level | <2.5 m/s2 | <2.5 m/s2 |
| Voltage/ Part no | 110 V DRILL-HM100T ~ 240 V DRILL-HM100T/2 | 110 V DRILL-HM100T ~ 240 V DRILL-HM100T/2 |
| Shipping Weight | 28.65 kg | 32 kg |
| Shipping Dimensions | 571 x 450 x 250 mm | 571 x 450 x 250 mm |
