Description
Magbeast-HM200T-min
Designed to solve the most challenging of applications, the Magbeast HM200T (MagBeast 5) offers a commanding 2850W, high torque motor that delivers maximum power to produce an incredible 200mm cutting capacity.

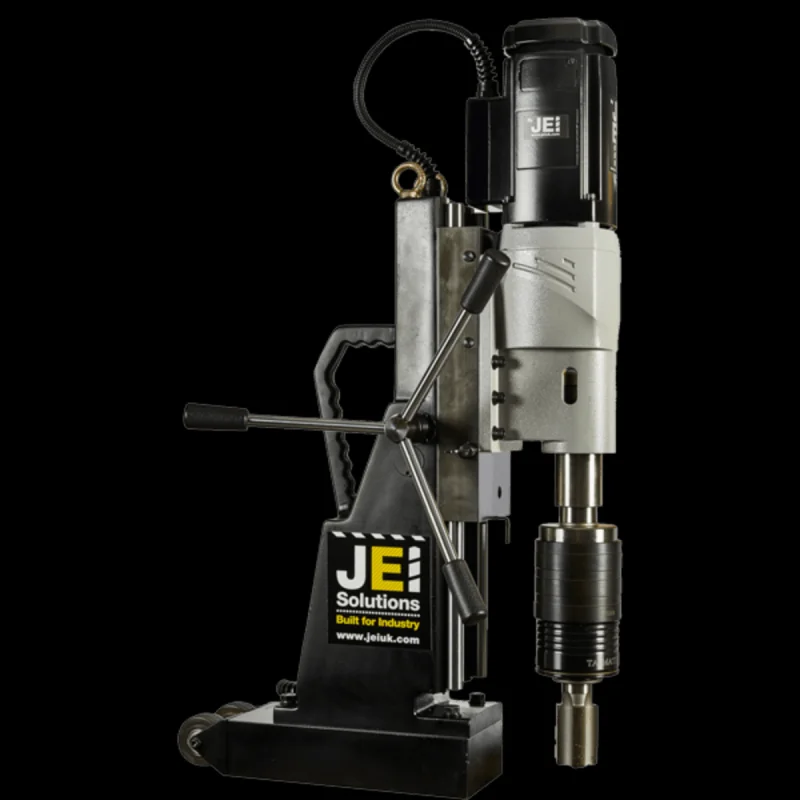

MAGBEAST HM200T (MAGBEAST 5)
SPECIFICATIONS
| Model | Magbeast HM200T (MagBeast 5MT) |
| Spindle | MT5 |
| Arbor Bore | 1-1/4 |
| Weight | 52kg |
| Max Stroke | 330mm |
| Cutter Capacity | 200mm |
| Twist Drill Capacity | 52mm |
| Countersink Capacity | 110mm |
| Tapping Capacity | M52 |
| Reaming Capacity | 52 mm |
| Motor | 2850W |
| RPM | 4 Multi Speeds 40/60 90/130 170/240 380/545 RPM |
| Height min/max | 730 / 955 mm |
| Length x Width | 455 x 280 mm |
| Magnetic Base L x W | 295 x 140 x 70 mm |
| Magnet Deadlift | 2300 kg on 1 Plate (26,800 N) |
| Noise Level | <90dB |
| Vibration Level | <2.5 m/s2 |
| Voltage/ Part no | 110 V DRILL-HM200T/1 ~ 240 V DRILL-HM200T/2 |
| Shipping Weight | 70 kg |
| Shipping Dimensions | 790 x 490 x 240 mm |
Magbeast-HM200T-Manual-Feb-2023-min
