Description

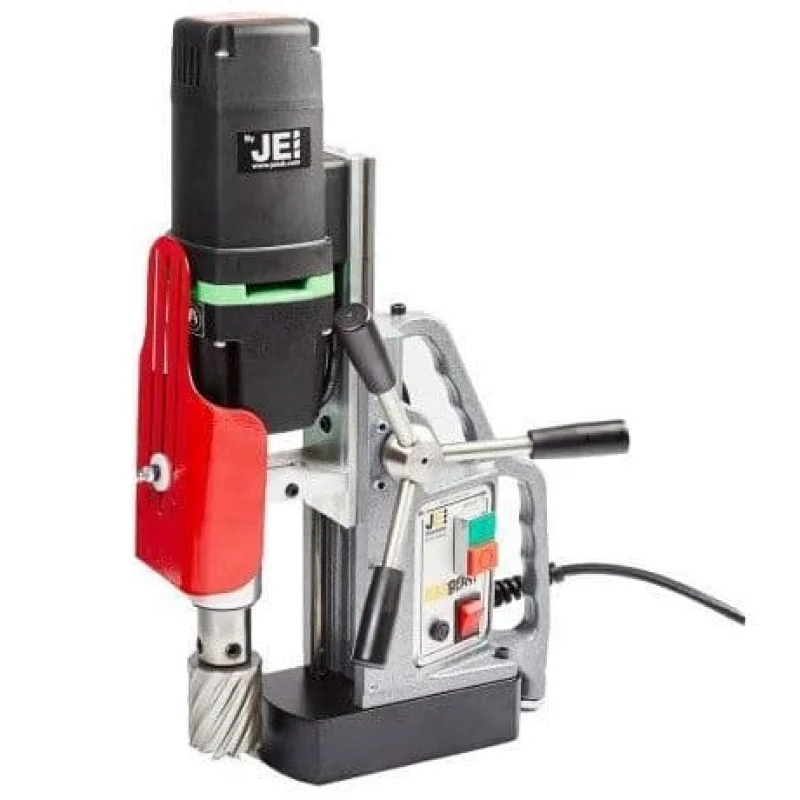

MAGBEAST HM50
SPECIFICATIONS
| Model | HM50 | HM50S (with Swivel Base) |
| Spindle | MT2 | MT2 |
| Weight | 14 kg | 16.5 kg |
| Max Stroke | 180 mm | 200 mm |
| Cutter Capacity | 50 mm x 4 depth of cut | 50 mm x 4 depth of cut |
| Twist Drill Capacity | 13 mm with 2MT Chuck / 23 mm with 2MT Twist Drill | 13 mm with 2MT Chuck / 23 mm with 2MT Twist Drill |
| Countersink Capacity | 40 mm | 40 mm |
| Reaming Capacity | 22 mm (19 mm shank) | 22 mm (19 mm shank) |
| Motor | 1150 W | 1150 W |
| RPM | No load 465/720 RPM Loaded 250/450 RPM | No load 465/720 RPM Loaded 250/450 RPM |
| Swivel Base | n/a | 360 degree swivel base |
| Height min/max | 380 / 560 mm | 390 / 590 mm |
| Length x Width | 280 x 170 mm | 280 x 170 mm |
| Magnetic Base L x W | 90 x 180 mm | 90 x 180 mm |
| Magnet Deadlift | 1250 kg on 1 Plate (12000 N) | 1250 kg on 1 Plate (12000 N) |
| Noise Level | <90dB | <90dB |
| Vibration Level | <2.5 m/s2 | <2.5 m/s2 |
| Voltage/ Part no | 110 V – DRILL-HM50 / 240 V – DRILL-HM50/2 | 110 V – DRILL-HM50S / 240 V – DRILL-HM50/2S |
| Shipping Weight | 18.15 kg | 20.5 kg |
| Shipping Dimensions | 490 x 380 x 200 mm | 490 x 380 x 200 mm |
