Description
The Ultra Low Profile is designed to fit into the most height restrictive areas at only 150mm high. Small in stature but not in power, this drill will handle up to 35mm diameter holes through 35mm plates.

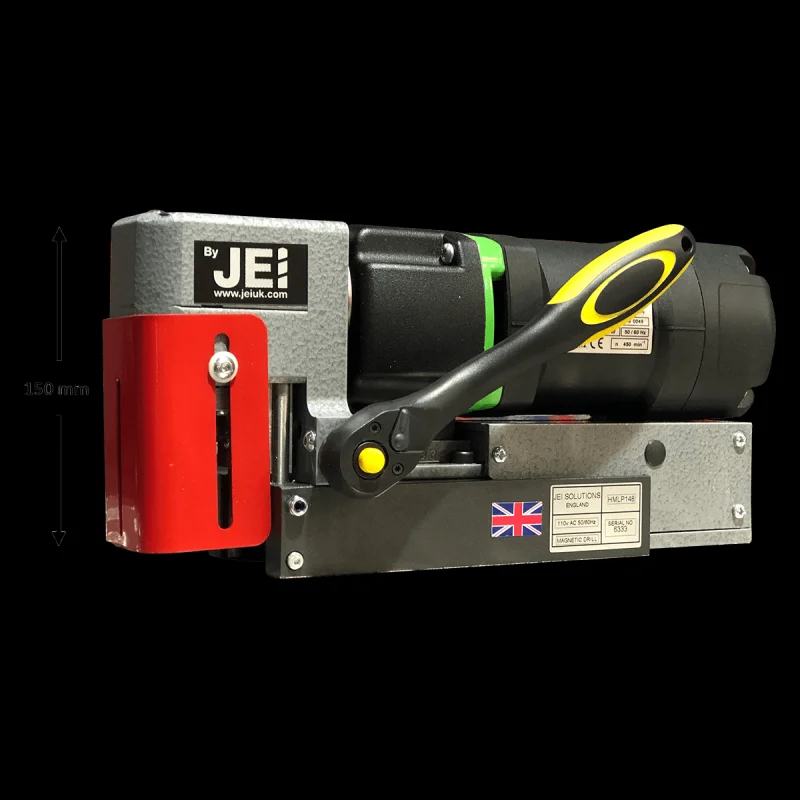

MAGBEAST ULTRA LOW PROFILE
SPECIFICATIONS
| Model | Ultra Low Profile |
| Spindle | 19 mm |
| Weight | 9 kg |
| Max Stroke | 40 mm |
| Cutter Capacity | 35 mm x 35 mm depth of cut |
| Countersink Capacity | 30 mm |
| Motor | 1100 W |
| RPM | 1 Fixed Speed no load 500 RPM loaded 290 RPM |
| Height | 150 mm |
| Length x Width | 320 x 120 mm |
| Magnetic Base L x W | 184 x 85 mm |
| Magnet Deadlift | 1000 kg on 1 Plate (9800 N) |
| Noise Level | <90dB |
| Vibration Level | <2.5 m/s2 |
| Voltage/ Part no | 110 V DRILL-ULP35/1 ~ 240 V DRILL-ULP35/2 |
| Shipping Weight | 13 kg |
| Shipping Dimensions | 360 x 350 x 260 mm |
