Description

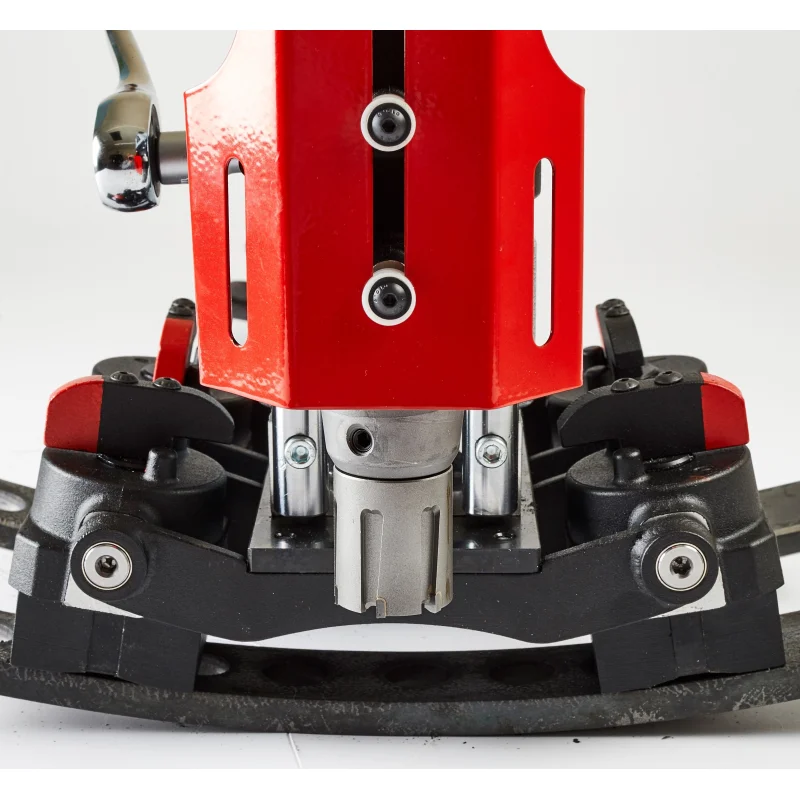

For drilling pipes, convex and concave surfaces.
- Easily swivels into position.
- Four permanent magnetic bases.
- Holds onto pipes with an outside radius of R300 mm.
- Holds onto pipes with an inside radius of R500 mm.
- Compact size and weight – ideal for site work.
- Internal coolant reservoir – ensuring maximum cutter life.
- Self correcting slide rails – for maintenance free operation.
- Light-weight – only 15kg.
- Hidden motor cable – for added protection.
- Detachable feed ratchet handle.
SPECIFICATIONS
| Model | MiniBeast Curve |
| Weight | 15 kg |
| Max Stroke | 55 mm |
| Cutter Capacity | 35 mm x 35 mm Depth |
| Height min/max | 315 / 390 mm |
| Length x Width | 300 x 245 mm |
| Magnetic Base L x W | 250 x 230 mm |
| Magnet Deadlift | 600 kg on 1 Plate (6000 N) |
| Min. Material Thickness | 10 mm |
| MIn. Pipe Diameter (Outside) | 300 mm |
| Min. Pipe Diameter (Inside) | 1000 mm |
| Min. Radius | R 500 |
| Voltage/ Part no | 110 V DRILL-MBCP/1 ~ 240 V DRILL-MBCP/2 |
