Description

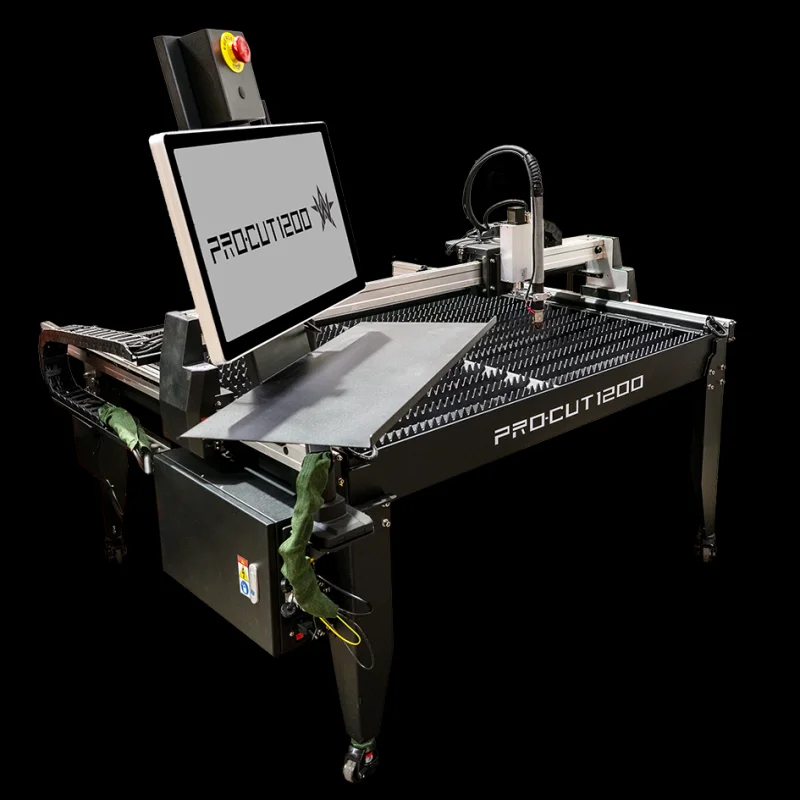

The PRO-CUT 1200 is a cost effective space saving solution for CNC precision quality cutting demands, suitable for light fabrication workshops and educational centres.
Designed with simplicity and usability in mind, the PRO-CUT 1200 is easy to install and operate, meaning the operator can achieve high quality cuts right away.
Package Includes
Pro-Cut 1200 CNC table, 21″ Touchscreen PC, Pre-installed software, Jasic Evo Cut-100plasma cutting power source, TM125 machine torch 6m, Plasma inverter trolley with accessory draw, Biologicut fluid 5L.
Key Features
-
3 Axis CNC cutting table
-
1.2m x 1.2m cutting area
-
Integrated water bed
-
Automatic torch height control
-
21 Windows based touchscreen PC
-
Pre-installed intuitive software allows the operator to quickly and easily create design files even with limited experience
-
Proximity limit switches on all axis
-
Cutting speeds up to 6000mm/min
-
230V AC 50/60Hz single phase power supply
-
Compatible with power sources with a cut capacity of up to 25mm
-
Supplied with castor feet for easy manoeuvrability around the workshop
-
CE & UKCA Certified
-
2 Year Warranty
Technical Data
|
Input Voltage Motors Axis 3 Cutting Area Cutting Speed (max) Control System Table Weight 200 Kg Max Weight on Table Bed Plasma Torch Dimensions (L x D x H) mm |
230V AC 50/60HZ Micro Step Motors 3 Amp 3 (X&Y&Z) Axis 1.2m x 1.2m (cutting area 1.25m x 1.25m) 6000mm per minute 21 touchscreen PC c/w windows 10 200 Kg 175 Kg TM125 6m 1650 x 1700 x 1150 (1.2m x 1.2m table) |
Datasheet
