Description

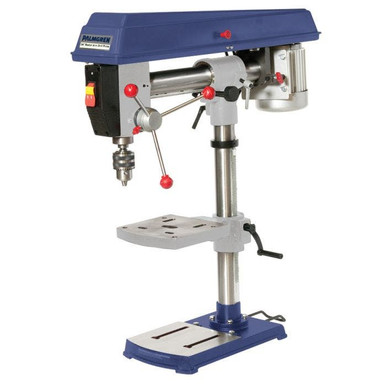

An extended reach, tilting drill head is ideal for large or odd-shaped work pieces. The table tilts 45° left or right allowing easy machining of holes at almost any angle. Durable cast iron head, table & baseSpindle supported by high quality ball bearingsRack and pinion table raiserTable tilts 45° right & left and swivels 360° around the column1/2″ through table & base slots for easy mounting and clamping of workpieceFront mounted safety, paddle on/off switchDrill chuck & keyThe head tilts 90° left and 45° rightThe head of the drill press moves 12-1/2″ forward or backwardAMPS5.5Capacity Cast Iron5/8″Country of OriginCNDrill Press ModelBench ModelModel Number80341Motor HP1/2RPM600-2592Spindle TaperMT2/JT33Spindle Travel3-5/32″Swing9″ to 33″Table Dimensions8-7/8″ x 9″Table Slots1/2″Voltage115Warranty3 YearUPC726896803418Unit of MeasureEachProduct Height (in)13Product Length (in)37Product Width (in)16.5Product Weight (lbs)100
View the Spec Sheet for This Item
