Description

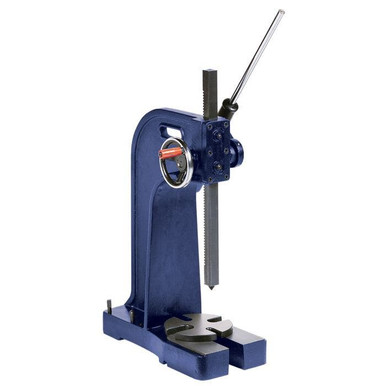

The arm provides optimal leverage position with consistent application of force. In addition, it has more clearance over the table for broaching or pressing large items. It is counterweighted for rapid handle return. Removable machined steel anvil has four slot positions. A lockable adjusting screw accurately limits the depth of the ram stroke. The steel ram is reversible with one end solid and the other end with a hole and magnet to hold bits and tools.Sturdy, cast-iron constructionRugged steel ram is driven by a machined pinionBase is pre-drilled for mounting on a bench or pedestalIncludes three piece bit set – 1 pointed, 1 round and 1 square end bit, and a removable steel anvilThe base is machine to hold the three bit setAnvil Diameter6/3/2004Base Dimension10″ x 21-1/2″Country of OriginCNLever Ratio38.6:1Max. Work Height16-1/8″Ram Dimensions1-1/4″ x 1-1/4″Model NumberRP30Pressure (tons)3Press TypeArbor PressesRam Hole Dia.1/2″Range of Slot Widths1 to 2Swing13-1/2″WarrantyLimited LifetimeUPC726896613024Unit of MeasureEachProduct Height (in)32.5Product Length (in)13Product Width (in)24Product Weight (lbs)212
