Description
- True All-Process excellent performance on MIG, Flux-Cored, MMA (including 6010 electrodes), DC TIG and AC TIG industrial applications
- Advanced AC TIG Features like High Frequency Starts, Frequency Adjustment up to 400 Hz, Expanded Balance & Offset Control and Dual Current. DC TIG also offers a Pulse Mode up to 500 Hz.
- sMIG Technology – exclusive sMIG (smart MIG) feature continuously learns and adapts to the operators welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders

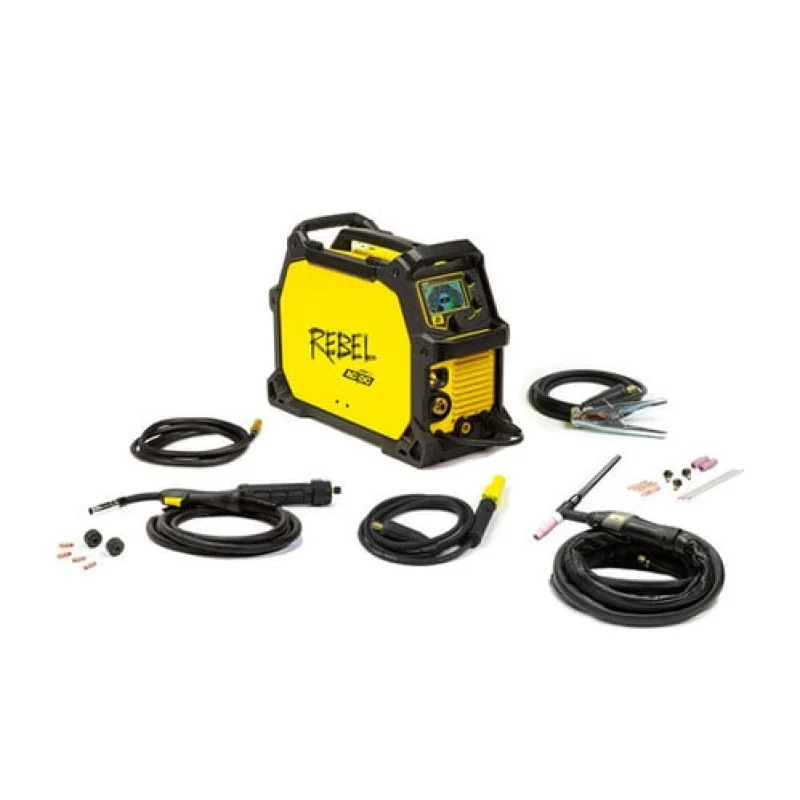

- Unmatched Portability and Durability weighing in at only 25.5 kg, Rebel EMP 205ic AC/DC with 5 handle roll cage can tackle any job around the shop or out at the job site
- TFT Multilingual Display packed full of features, Rebel EMP 205ic AC/DC has 4 programmable memory locations for each process, multi-language selection, trim adjustment, inductance control, pre/post flow control and spot weld setting – giving you the ability to fine tune your welds for the most optimal performance
| Voltage | 120/230 VAC 1, 50/60 Hz |
| Max Output | 235 A / 26.2 V (MIG) 205 A / 18.2 V (TIG DC) 180 A / 27.2 V (STICK) |
| MIG (GMAW/FCAW) Welding Output | 205 A / 24.3 V @ 25 % Duty Cycle 150 A / 21.5 V @ 40 % Duty Cycle 125 A / 20.3 V @ 60 % Duty Cycle 110 A / 19.5 V @ 100 % Duty Cycle |
| MMA (SMAW) Welding Output | 170 A / 26.8 V @ 25 % Duty Cycle 125 A / 25 V @ 60 % Duty Cycle 100 A / 24 V @ 100 % Duty Cycle |
| TIG AC/DC (GTAW) Welding Output | 205 A / 18.2 V @ 25 % Duty Cycle 125 A / 15 V @ 60 % Duty Cycle 110 A / 14.4 V @ 100 % Duty Cycle |
| AC Balance | 60-90 % |
| Current Range | 5-235 A |
| Voltage Range | 12-26 V |
| Wire Feeder Specifications | 2.0-12.1 m/min |
| Open Circuit Voltage | 68 V |
| Power Factor at Maximum Current | 0.98 |
| Efficiency at Maximum Current | 83 % |
| rated kVA | 4.98 kVA |
| Recommended Generator | >7 kVA |
| Enclosure Class | IP23S |
| Certification | CE |
| Description or Qualifier | 1.8 m |
| Dimensions, L x W x H Lead Length |
1.8 mm 584 x 229 x 406 mm |
| Weight | 22 kg |
- FCAW (Flux Core)
- SMAW/MMA (Stick)
- GMAW (MIG/MAG)
- GTAW-AC (TIG AC)
- GTAW-DC (TIG DC)
- GTAW-P (Pulsed TIG)
Rebel EMP 205ic ACDC Factsheet-min
