Sale!

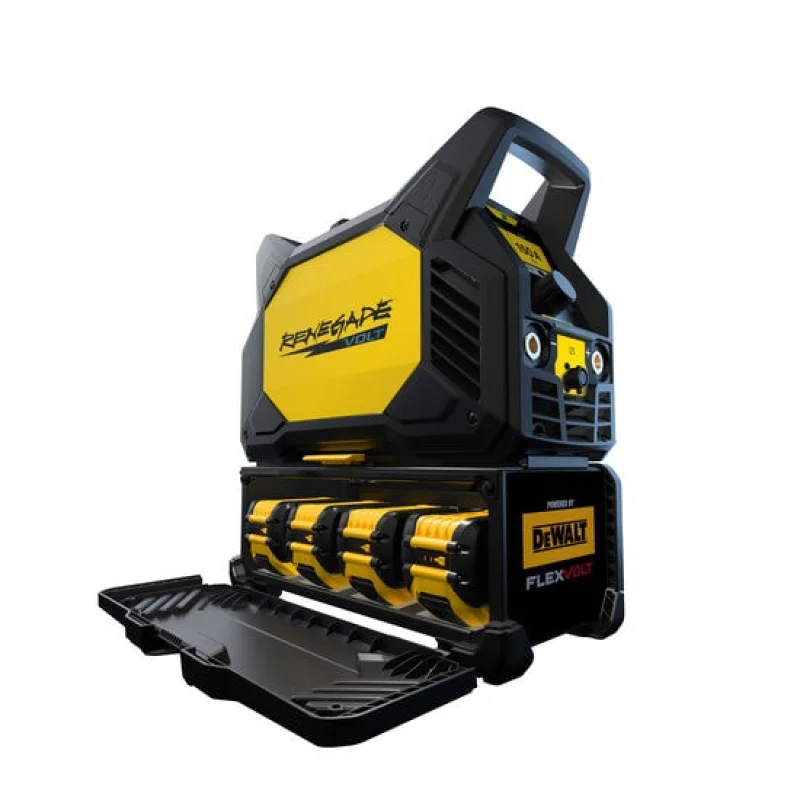

Renegade VOLT ES 200i

Renegade VOLT ES 200i

Original price was: $119.00.Current price is: $29.75.

SKU: P45444062 Category:

Description

Highlights

  • 200 A output on AC mains (230V)
  • Up to 140 A output on battery power
  • Includes (4) DEWALT FLEXVOLT 18v/54v max 12 Ah batteries
  • AMP+ Hybrid Mode for extra power
  • Lightweight and portable battery powered welder
  • Durable, impact-resistant housing
  • Sun-friendly, intuitive user interface
  • Memory storage for welding parameters

Industries

  • Agricultural Equipment
  • Civil Construction
  • Food and Beverage
  • Marine and Offshore
  • Mining
  • Power Generation
  • Repair and Maintenance
  • Railcars
  • Ship and Offshore Yards
  • Transportation

Process

  • SMAW/MMA (Stick)
  • GTAW (TIG)

Specifications

Specifications
Voltage 120/230 VAC 1, 50/60 Hz
GTAW (AC) Welding Output 140 A / 15.6 V (120 V) @ 25 % Duty Cycle
90 A / 13.6 V (120 V) @ 60 % Duty Cycle
70 A / 12.8 V (120 V) @ 100 % Duty Cycle
200 A / 18.0 V (230 V) @ 25 % Duty Cycle
129 A / 15.2 V (230 V) @ 60 % Duty Cycle
100 A / 14.0 V (230 V) @ 100 % Duty Cycle
GTAW (AMP+) Welding Output 180 A / 17.2 V (120 V) @ 25 % Duty Cycle
130 A / 15.2 V (120 V) @ 60 % Duty Cycle
100 A / 14.0 V (120 V) @ 100 % Duty Cycle
200 A / 18.0 V (230 V) @ 25 % Duty Cycle
129 A / 15.2 V (230 V) @ 60 % Duty Cycle
100 A / 14.0 V (230 V) @ 100 % Duty Cycle
GTAW (DC) Welding Output 150 A / 16.0 V (80 V) @ 18 % Duty Cycle
115 A / 14.6 V (80 V) @ 25 % Duty Cycle
90 A / 13.6 V (80 V) @ 60 % Duty Cycle
70 A / 12.8 V (80 V) @ 100 % Duty Cycle
SMAW (AC) Welding Output 110 A / 24.4 V (120 V) @ 25 % Duty Cycle
70 A / 22.8 V (120 V) @ 60 % Duty Cycle
55 A / 22.2 V (120 V) @ 100 % Duty Cycle
200 A / 28.0 V (230 V) @ 25 % Duty Cycle
129 A / 25.2 V (230 V) @ 60 % Duty Cycle
100 A / 24.0 V (230 V) @ 100 % Duty Cycle
SMAW (AMP+) Welding Output 150 A / 26.0 V (120 V) @ 25 % Duty Cycle
90 A / 23.6 V (120 V) @ 60 % Duty Cycle
70 A / 22.8 V (120 V) @ 100 % Duty Cycle
200 A / 28.0 V (230 V) @ 25 % Duty Cycle
129 A / 25.2 V (230 V) @ 60 % Duty Cycle
100 A / 24.0 V (230 V) @ 100 % Duty Cycle
SMAW (DC) Welding Output 140 A / 25.2 V (80 V) @ 18 % Duty Cycle
110 A / 24.4 V (80 V) @ 25 % Duty Cycle
80 A / 23.2 V (80 V) @ 60 % Duty Cycle
60 A / 22.4 V (80 V) @ 100 % Duty Cycle
Voltage Range 90-270 VAC
Open Circuit Voltage 80 VDC
Power Factor at Maximum Current 0.99
Efficiency at Maximum Current 80 %
Fuse Slow 16 A
Energy Save Mode <50 W
Supply Plug CEE 7/7 (type E)
Operating Temp -10 – +40 C
rated kVA 2.7 kVA (120 V)
6.0 kVA (230 V)
Enclosure Class IP23
Certification CE; UKCA
Description or Qualifier 460 mm
480 mm
Dimensions, L x W x H
with battery box
without battery box		 480 x 220 x 485 mm
460 x 200 x 320 mm
Weight
power source and battery box
power source, battery box, and 4 battery packs*		 19 kg
24.5 kg
Setting Range
SMAW (AC) 230 V
SMAW (AMP+) 120 V
GTAW (AC) 230 V
GTAW (AMP+) 120 V
GTAW (AMP+) 230 V
SMAW (AC) 120 V
SMAW (DC) 80 V
SMAW (AMP+) 230 V
GTAW (AC) 120 V
GTAW (DC) 80 V		 20.6-28 V (10-200 A)
20.6-26 V (10-150 A)
10.4-18 V (10-200 A)
10.4-17.2 V (10-180 A)
10.4-18 V (10-200 A)
20.6-24.4 V (10-110 A)
20.6-25.6 V (10-140 A)
20.6-28 V (10-200 A)
10.4-15.6 V (10-140 A)
10.4-16 V (10-150 A)

* Weight when using a DEWALT FLEXVOLT 18V/54V max 12 Ah Battery, weight may vary when using other FLEXVOLT battery packs.

AC = Mains Mode | DC = Battery Mode | AMP+ = AMP+ Hybrid Mode

Renegade Volt ES 200i Factsheet-min

Renegade VOLT ES 200i Quick start guide-min
