Description
Entry-level welder with professional performance.

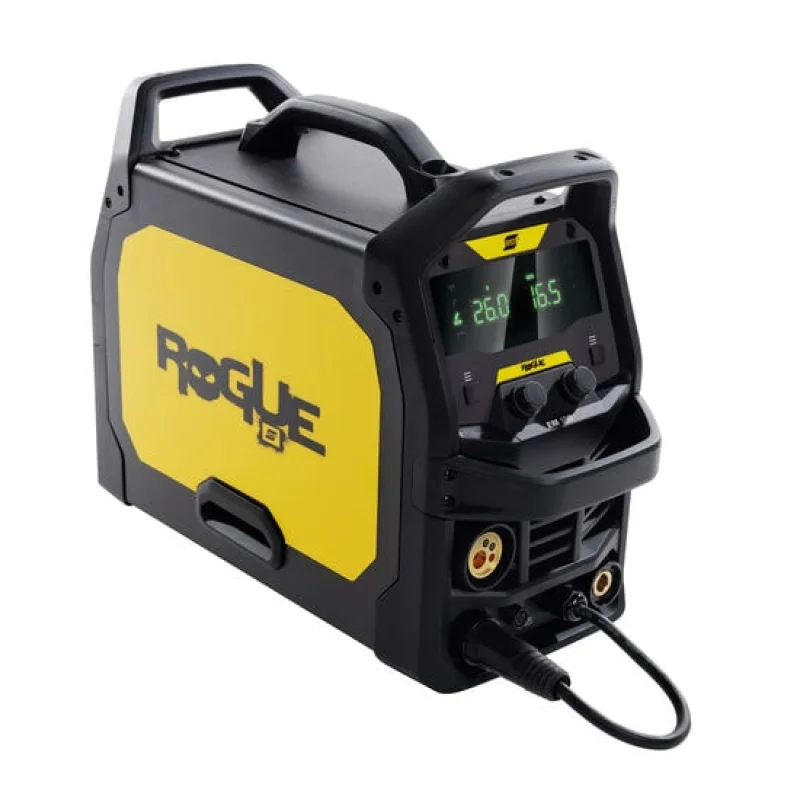

Rogue EM and EMP single-phase welding power sources take everything welders loved about Caddy Mig to the next level with proven Rogue performance and a rugged industrial design. Power Factor Control (PFC) technology allows for a highly efficient and steady arc that is resistant to power fluctuations. Break away from convention with Rogue.
Built to withstand impact after impact.
No other machine at this price point comes close to matching Rogues strength. Its robust and rigid fibreglass-moulded housing is built to withstand impact after impact, in the shop or in the field. Like every ESAB machine, Rogue comes with our industry-leading, 3-year warranty for unbeatable peace of mind. Goodbye cheaply constructed welders, hello strength and toughness when you go Rogue.
A portable workhorse.
Rogues compact and lightweight design makes it easy to carry from job to job, with sturdy handles and a small footprint. Thanks to stable arc performance, performs in the workshop or on-site, on both mains and generator power, all without affecting weld quality. With its durable and weather-resistant housing and IP23S rating, Rogue is the definition of a portable workhorse.
Take MIG welding to the next level.
A large, clear digital display allows easy access to all weld parameters including synergic programs and MMA Welding. With dual voltage 110/230V input and compatibility with 10kVa generators, Rogue EM performs in the workshop or on-site, on both mains and generator power.
Advanced features for total control.
With Arc Dynamics you can fine tune arc characteristics based on the material you are welding. So if you need a stiff arc for carbon steel, or a soft arc for stainless, Rogue will not let you down. Advanced MIG features include adjustable pre- and post-flow, burn back control, wire jog and gas purge. In MMA mode, hot start and arc force control ensure smooth starts and consistent welds.
Specifications
| Specifications | |
|---|---|
| Voltage | 230 VAC 1, 50/60 Hz |
| GMAW Welding Output | 180 A / 23 V @ 25 % Duty Cycle 116 A / 19.8 V @ 60 % Duty Cycle 90 A / 18.5 V @ 100 % Duty Cycle |
| SMAW Welding Output | 150 A / 26.0 V @ 25 % Duty Cycle 97 A / 23.9 V @ 60 % Duty Cycle 75 A / 23.0 V @ 100 % Duty Cycle |
| Current Range | 30-190 A |
| Voltage Range | 12-26 V |
| Wire Feeder Specifications | 2.0-16.5 m/min |
| Open Circuit Voltage | 78 VDC |
| Metal Stainless Steel Cored Wire Aluminium Mild Steel |
0.6-1.0 mm 0.8-1.0 mm 0.8-1.0 mm 0.6-1.0 mm |
| Max Spool Diameter | 100 & 200 mm |
| Power Factor at Maximum Current | 0.8 |
| Efficiency at Maximum Current | 82.7 % |
| Energy Save Mode | 20 W |
| Operating Temp | -10 – +40 C |
| Enclosure Class | IP23S |
| Certification | CE |
| Dimensions, L x W x H | 590 x 220 x 385 mm |
| Weight | 16.2 kg |
Highlights
- Large 14 Segment Display instantaneous feedback for both voltage and wire feed speed for clear viewing
- Synergic Weld Programs full range of welding parameters, 0.5 8.0 mm with single knob control
- Power Factor Correction (PFC) ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m
- Unique rugged industrial design supporting multiple lift points and cable management
- Arc Dynamics fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel
- Spool Gun Ready Rogue automatically configures set up when spool gun is connected
- IP23S rated for indoor/outdoor use
Industries
- Automotive
- Automotive Bodies
- Agricultural Equipment
- Civil Construction
- Light Fabrication
- Repair and Maintenance
Rogue EM 180 Factsheet-min
