Description

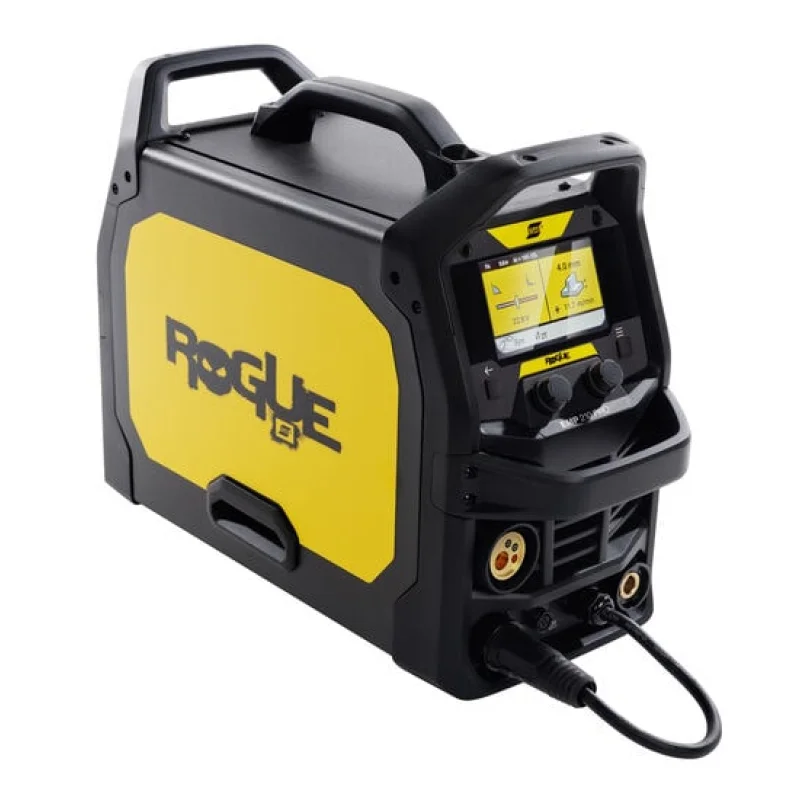

Entry-level welder with professional performance.
Rogue EM and EMP single-phase welding power sources take everything welders loved about Caddy Mig to the next level with proven Rogue performance and a rugged industrial design. Power Factor Control (PFC) technology allows for a highly efficient and steady arc that is resistant to power fluctuations. Break away from convention with Rogue.
Built to withstand impact after impact.
No other machine at this price point comes close to matching Rogues strength. Its robust and rigid fibreglass-moulded housing is built to withstand impact after impact, in the shop or in the field. Like every ESAB machine, Rogue comes with our industry-leading, 3-year warranty for unbeatable peace of mind. Goodbye cheaply constructed welders, hello strength and toughness when you go Rogue.
A portable workhorse.
Rogues compact and lightweight design makes it easy to carry from job to job, with sturdy handles and a small footprint. Thanks to stable arc performance, performs in the workshop or on-site, on both mains and generator power, all without affecting weld quality. With its durable and weather-resistant housing and IP23S rating, Rogue is the definition of a portable workhorse.
Next-level multiprocess welding performance.
A full-colour 5 screen and intuitive interface allow easy access to all features and parameters, even in bright sunlight. Take performance to the max with a true multiprocess welder with Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored, Lift TIG, Stick/MMA, and 6010 cellulosic capabilities.
Advanced features for total control.
With Arc Dynamics you can fine tune arc characteristics based on the material you are welding. So if you need a stiff arc for carbon steel, or a soft arc for stainless, Rogue will not let you down. Advanced MIG features include adjustable pre- and post-flow, burn back control, wire jog and gas purge. In MMA mode, hot start and arc force control ensure smooth starts and consistent welds.
Specifications
| Specifications | |
|---|---|
| Voltage | 230 VAC 1, 50/60 Hz |
| MIG (GMAW) Welding Output | 210 A / 24.5 V @ 30 % Duty Cycle 136 A / 20.8 V @ 60 % Duty Cycle 105 A / 19.2 V @ 100 % Duty Cycle |
| MMA (SMAW) Welding Output | 180 A / 27.2 V @ 30 % Duty Cycle 116 A / 24.7 V @ 60 % Duty Cycle 90 A / 23.6 V @ 100 % Duty Cycle |
| TIG (GTAW) Welding Output | 210 A / 18.0 V @ 30 % Duty Cycle 136 A / 15.4 V @ 60 % Duty Cycle 105 A / 14.2 V @ 100 % Duty Cycle |
| Current Range | 30-210 A |
| Voltage Range | 12-26 V |
| Wire Feeder Specifications | 2.0-16.5 m/min |
| Open Circuit Voltage | 78 VDC |
| Metal Aluminium Stainless Steel Cored Wire Mild Steel |
0.6-1.0 mm 0.6-1.0 mm 0.6-1.0 mm 0.6-1.0 mm |
| Max Spool Diameter | 100 & 200 mm |
| Power Factor at Maximum Current | 0.99 |
| Efficiency at Maximum Current | >82 % |
| Energy Save Mode | 50 W |
| Operating Temp | -10 – +40 C |
| Enclosure Class | IP23S |
| Certification | CE |
| Dimensions, L x W x H | 590 x 220 x 385 mm |
| Weight | 16.7 kg |
