Description

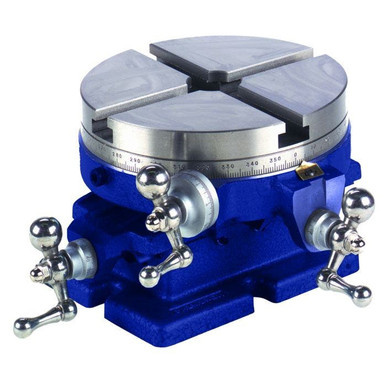

Palmgren’s’ rotary cross slide tables have precise rotary, lateral, and transverse feeds for rapid positioning of the work piece.Bolted to a machine, these tables increase your ability to mill, route, shape, cut slots and keyways, as well as grind.Intricate jobs become easy on metal, plastic, composites, or wood.Accurately position work on the “X” and “Y” axis, as well as 360° table rotationPrecision ground table top to 0.001″ total indicator readingA 5/8″ keyway and mounting lugs are provided for locating and accurate, secure mountingSmooth worm gear drive provides positive rotary feedBalanced ball crank feed handles do not exceed below the base to eliminate interference with the machine table4″ cross slide travelCross slide dials are calibrated in 0.001″ incrementsRotary dials are graduated in 3 minute increments and 1 minute increment on the vernierCountry of OriginTWModel Number183Positioning Tables TypeCross SlideWarrantyLimited LifetimeUPC726896341026Unit of MeasureEachProduct Height (in)7Product Length (in)14.75Product Width (in)14.75Product Weight (lbs)50.3
View the Spec Sheet for This Item
