Description

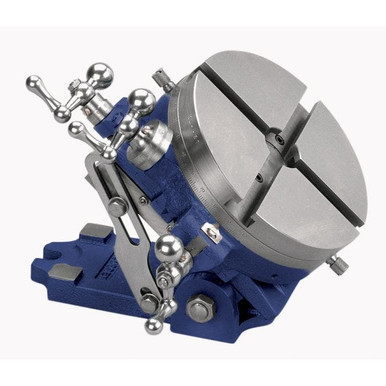

These remarkably precise tilting rotary tables provide all the combination of movements and positioning necessary to add increased versatility on drill presses, milling machines, surface grinders, or a layout table.Rotary indexing, lateral and transverse cross feed, and graduated angle settings all in one table.Accurately position work on the X and Y axis as well as 360 degree table rotationCross slide dials are calibrated in 0.001 in increments and provide 4 in cross slide travelAngular inclination from 0 degree horizontal to 90 degree verticalAngular position is indicated in 1 degree increments and locked via 4 bolts and 2 side platesRotary dials are graduated in 3 minute increments and 1 minute increments on the vernierA 5/8 in keyway and mounting lugs are provided for secure mountingCountry of OriginTWModel Number184Positioning Tables TypeRotaryWarrantyLimited LifetimeUPC726896341033Unit of MeasureEachProduct Height (in)7Product Length (in)14.75Product Width (in)14.75Product Weight (lbs)53.5
View the Spec Sheet for This Item
