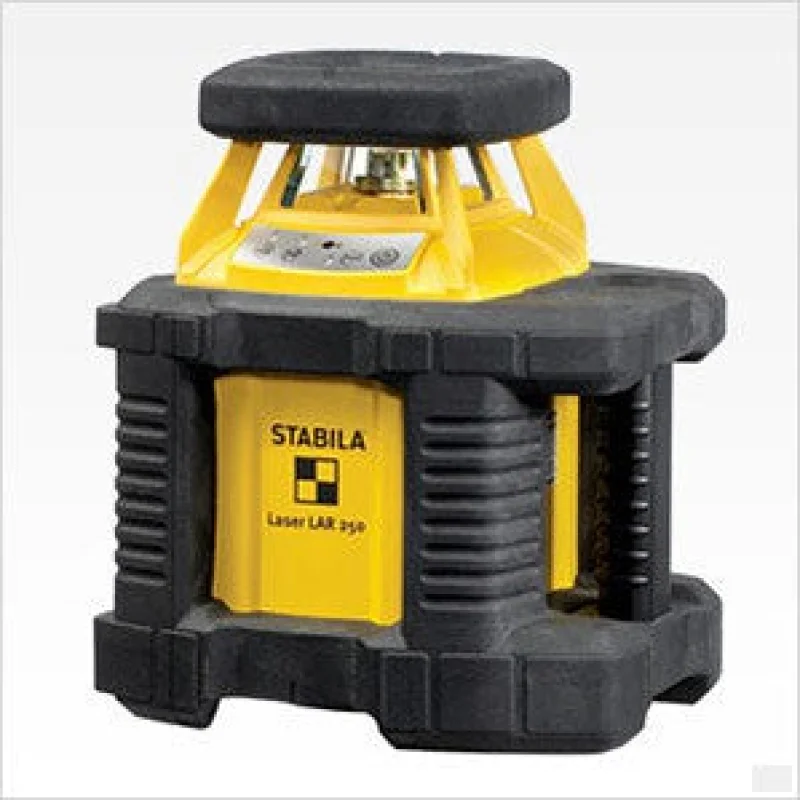

Description
Self-leveling / Remote controlled / Horizontal and vertical operation / 8 Functions / Working range 1,150’/ 350 m / IP 65
FEATURES
- Patented “SPS” Shock Protection System takes a 6′ drop to concrete
- Range: 1,150ft/350m
- Variable speed rotation
- Dust/water proof
- Accuracy: +/- 1/8″ over 100′
- Operation time 120 hours on 2 X D Batteries
- High alert shut off function
- Dust and water proof-IP65
- Rubber Exterior over metal housing
- Shock absorbing interior
- Horizontal, vertical, 0-5 slope, 3 scan lengths, 90 layout beam
- Start, stop, rotation speed, scan length and scan line position as well as slope function can be controlled at the key pad or with the included remote control
- Included De-Tech receiver shows exact distance to grade in 1/16’s or mm’s
- Included adjustable wall mount bracket adds versatility in interior applications not suitable for tripod use
SPECIFICATIONS
Type LAR250Catalog 05600TRSelf Leveling Range5Range1,150 feet (350 m)Accuracy100′ (.1mm per m)Rotation SpeedsVariableTripod Connection5/8″ X 11Battery Life120 HoursBattery Type2 x DLaser class3AOutput<5mWLaser wavelength633nm-670nmKit Weight lbs47.0 (05600TR)Kit Weight lbs18.0 (05610)Transmitter Weight lbs7.2Transmitter Dimensions8.75"X10.5"X7.5
