Description
FEATURES
- Rapid transfer of 90 degree angles for layout work
- Plumb points up & down
- Range of visible beams: 100′
- Adjustable base lifts laser over tracks and bottom plates
- Integrated V-groove rare earth magnet mount
- Pendulum lock for added protection during transport and storage
- Includes Laser, target plate, wall mount bracket, high stability framing base, manual and pouch.

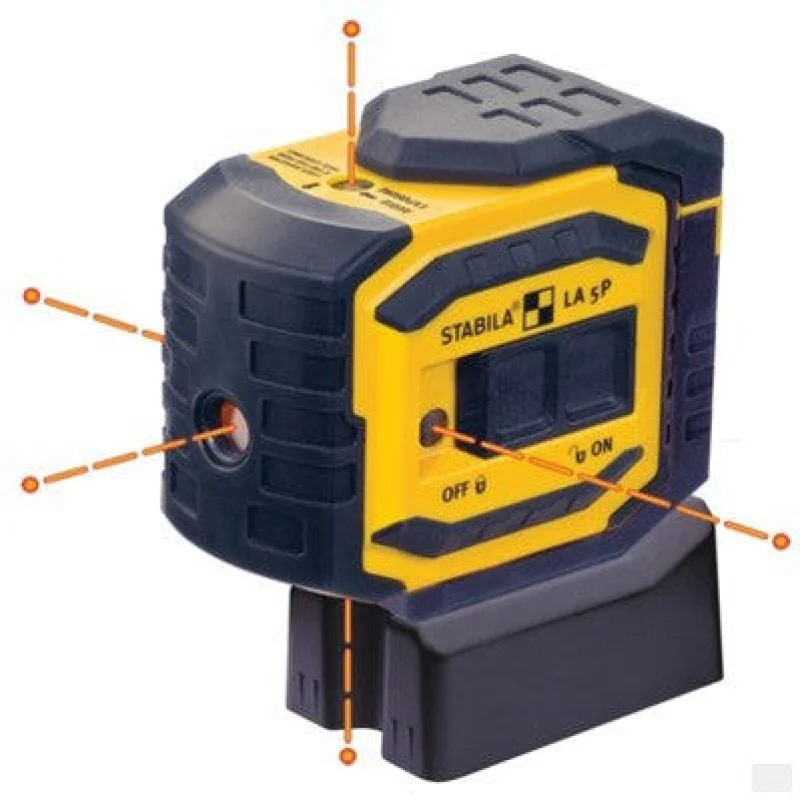

Type LA-5P
Catalog 03160Self Leveling Range+/- 4.5Working Range100’Accuracy Tolerance Level+/- 3/8″ @ 100’Accuracy Tolerance 90+/- 1/4″ @100’Accuracy Tolerance Up Beam+/- 3/8″ @ 100’Accuracy Tolerance Down Beam+/- 1/4″ @ 100’Battery Run Time20 HoursBatteries3 AALaser class2Output<1mWLaser wavelength630nm-660nmWeight lbs1.2Dimensions4.5"X4"X2"03160/LA-5P Includes:LA-5P laser, target plate, wall bracket, high stability framing base, batteries, manual and pouch.
